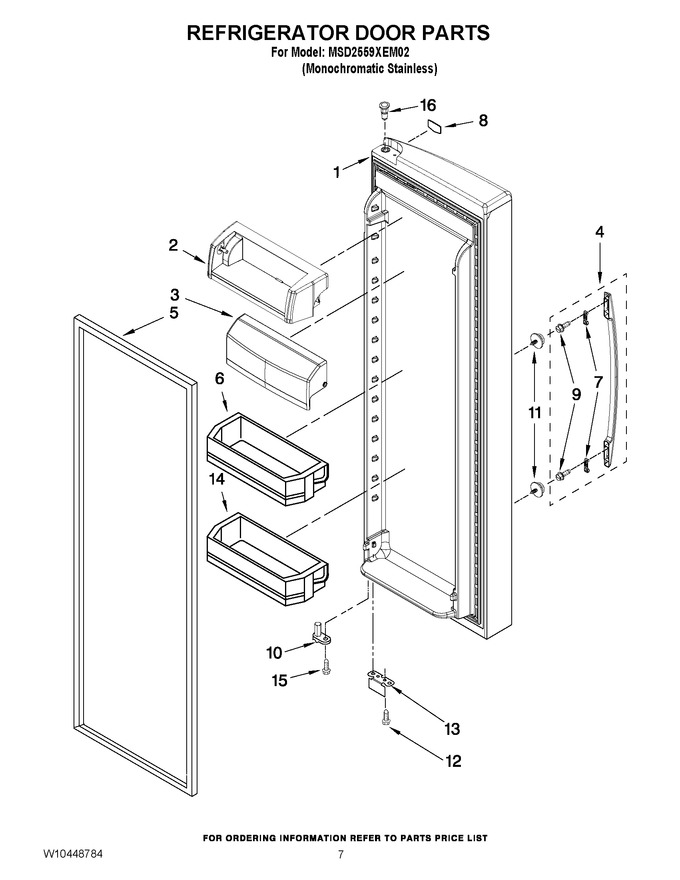

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10318389		Refrigerator Door (includes Item 5) (mono Stainless)		Appelez-nous	-
2	2255420		Door, Compartment				$ 49.86
3	2255421		Dairy Door				$ 34.76
4	WPW10170743		Handle (includes Items 7 & 9) (stainless Steel)   (Replaces: W10170743)				$ 328.97
5	WPW10136734		Door Gasket, Magnetic (apollo Gray)   (Replaces: 2326338)				$ 301.85
6	WPW10321304		Door Bin   (Replaces: W10321303)			Immediately	$ 40.46
7	WP2255411		Clip, Handle   (Replaces: 2255411)				$ 32.90
8	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 63.45
9	W10176593		Screw, Clip				$ 13.23
10	WP2182179		Door Closer Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
11	WPW10288153		Stud, Handle   (Replaces: W10288153)			Immediately	$ 8.69
12	WP489483		Screw   (Replaces: 489420)				$ 10.27
13	W10219808		Bracket, Door Stop (black)		Appelez-nous	-
14	WP2156022		Door Bin, Large   (Replaces: 2156022)			Immediately	$ 70.75
15	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
16	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.34
