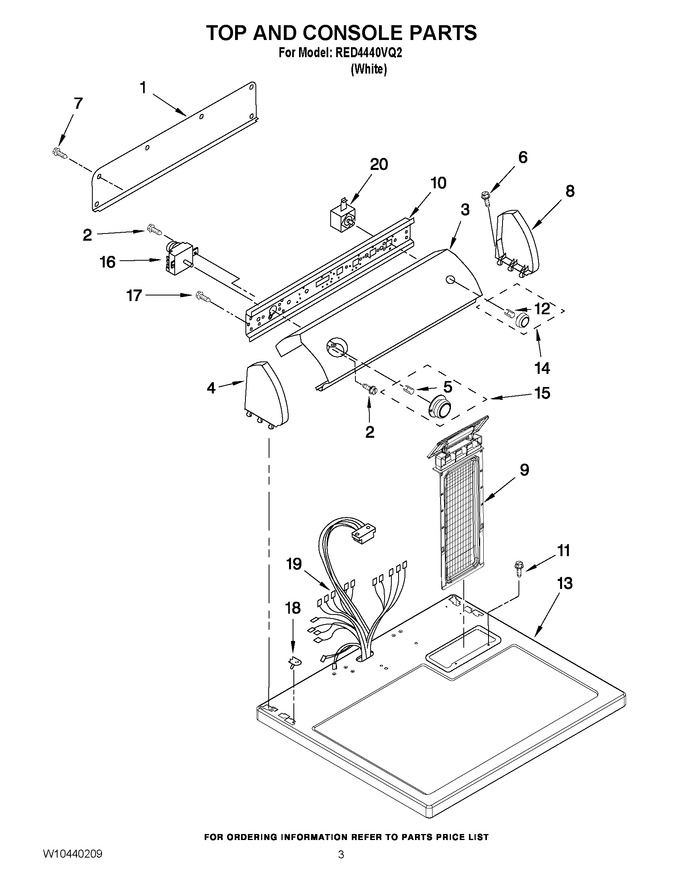

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 12.49
3	W10205688		Panel, Control		Appelez-nous	-
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 78.81
5	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
7	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 6.80
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 78.81
9	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 49.17
10	8271418		Bracket, Control				$ 57.15
11	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
12	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
13	8557930		Top		Appelez-nous	-
14	8538959		Knob, Push-to-start				$ 25.38
15	WP8557455		Timer Knob Assembly   (Replaces: 8538953)				$ 53.65
16	WP8299781		Timer   (Replaces: 8299781)			Immediately	$ 342.50
17	WP90767		Screw, 8-18 X 3/8   (Replaces: 3348629)			Immediately	$ 7.43
18	WP357213		Nut,push-in   (Replaces: 357213)				$ 6.98
19	WPW10450292		Harness, Wiring   (Replaces: 8576500)				$ 251.39
20	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99
