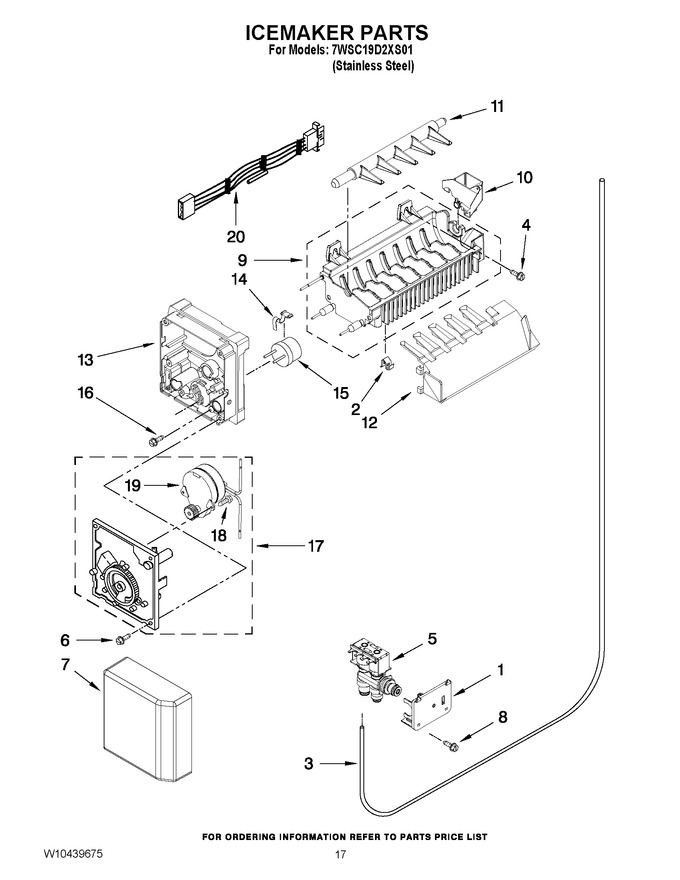

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10847867		Bracket, Valve   (Replaces: W10237915)				$ 72.68
2	WP628379		Clip, Fuse   (Replaces: 628379)				$ 9.99
3	W10823511		Water Tube   (Replaces: W10175644)			Immediately	$ 29.17
4	WP489478		Screw   (Replaces: 489478)				$ 7.36
5	WPW10279878		Filter Valve Asm   (Replaces: W10279878)				$ 164.68
6	W10001240		Screw				$ 8.30
7	W10289697		Cover		Appelez-nous	-
8	WPW10141625		Screw (2)   (Replaces: W10141625)				$ 20.00
9	WPW10300025		Mold & Heater Assembly (also Order 542638   (Replaces: W10136595)			Immediately	$ 181.73
10	W10122561		Cup, Water Fill				$ 26.24
11	W10318914		Ejector				$ 34.27
12	WPW10122563		Ice Striper   (Replaces: W10122563)				$ 89.48
13	WP2195914		Support   (Replaces: 2195914)				$ 98.82
14	WP2315522		Retainer Thermostat   (Replaces: 2315522)				$ 10.44
15	628532		Thermostat (also Order 542369 Cement Alumilastic)				$ 98.16
16	8533917		Screw				$ 12.64
17	WPW10367657		Module Assembly   (Replaces: W10367657)				$ 172.71
18	W11096900		Screw   (Replaces: W10001220)		Appelez-nous	-
19	N/P		Motor (not Serviced, Order No.17)		Appelez-nous	-
20	W11545326		Wire Harness   (Replaces: W10367658)				$ 173.73
100	W11545326		Complete Icemaker Assembly   (Replaces: W10336914)				$ 173.73
