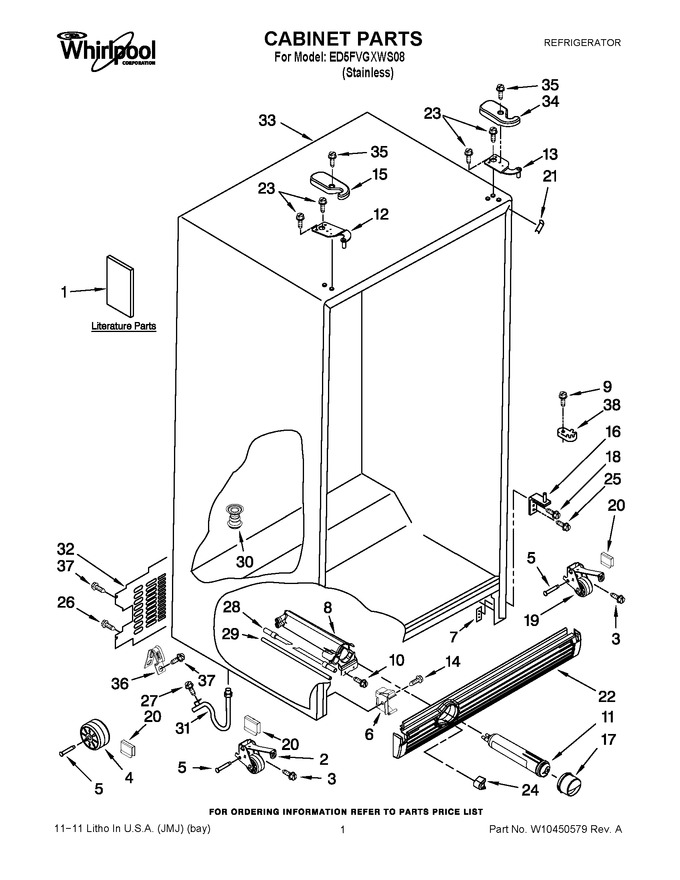

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10305231 | Instruction Sheet, Door Removal |
|
- | |||||
| 1 | W10316634 | Use & Care Guide |
|
- | |||||
| 1 | W10158909 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10296167 | Energy Label |
|
- | |||||
| 2 | 2174748 | Front Roller, Left |
|
- | |||||
| 3 | WP489427 | Screw (Replaces: W10146358) |
|
$ 7.06 | |||||
| 4 | WPW10475495 | Roller, Rear (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 5 | WPW10250570 | Axle, Roller (Replaces: W10250570) |
|
$ 37.96 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.30 | ||||
| 7 | 2196135 | Screw Plate |
|
$ 18.96 | |||||
| 8 | WPW10121138 | Housing, Water Filter (Replaces: W10121138) |
|
Immediately | $ 103.15 | ||||
| 9 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.27 | |||||
| 10 | WP489500 | Screw (Replaces: 489500) |
|
$ 7.35 | |||||
| 11 | EDR3RXD1B | Water Filter (Replaces: W10121146) |
|
Immediately | $ 49.99 | ||||
| 12 | W10242650 | Hinge, Top (fc) |
|
- | |||||
| 13 | W10242649 | Hinge, Top (rc) |
|
- | |||||
| 14 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 15 | WP2203407B | Hinge Cover (Replaces: 2203407B) |
|
$ 18.45 | |||||
| 16 | W10138965 | Hinge Bottom |
|
$ 84.52 | |||||
| 17 | WP2260518B | Cap, Water Filter (Replaces: 2260502B) |
|
Immediately | $ 30.56 | ||||
| 18 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 19 | 2174748 | Front Roller, Right |
|
- | |||||
| 20 | WP2174706 | Clip, Axle (Replaces: 2174706) |
|
$ 10.38 | |||||
| 21 | W10242660 | Filler, Wrapper |
|
- | |||||
| 22 | WPW10311033 | Grille (Replaces: W10311033) |
|
$ 166.42 | |||||
| 23 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 24 | WP2260503B | Button, Water (filter) (Replaces: 2260503B) |
|
$ 68.78 | |||||
| 25 | W10856122 | Screw (Replaces: 3400103) |
|
$ 7.44 | |||||
| 26 | WP488488 | Screw (Replaces: 489290) |
|
$ 7.67 | |||||
| 27 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 28 | W10281289 | Tube, Filter Inlet |
|
$ 57.80 | |||||
| 29 | WPW10350006 | Tube, Filter Outlet (Replaces: 2255012) |
|
$ 109.19 | |||||
| 30 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 48.11 | ||||
| 31 | W11512417 | Extension Tube (Replaces: W10153550) |
|
$ 32.88 | |||||
| 32 | WP2188755 | Cover, Unit (Replaces: 2188735) |
|
$ 128.44 | |||||
| 33 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 34 | WP2203408B | Hinge Cover (Replaces: 2203408B) |
|
$ 17.60 | |||||
| 35 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 9.86 | |||||
| 36 | 549193 | Clamp, Service Cord |
|
$ 12.65 | |||||
| 37 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 38 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155311) |
|
Immediately | $ 5.31 |
