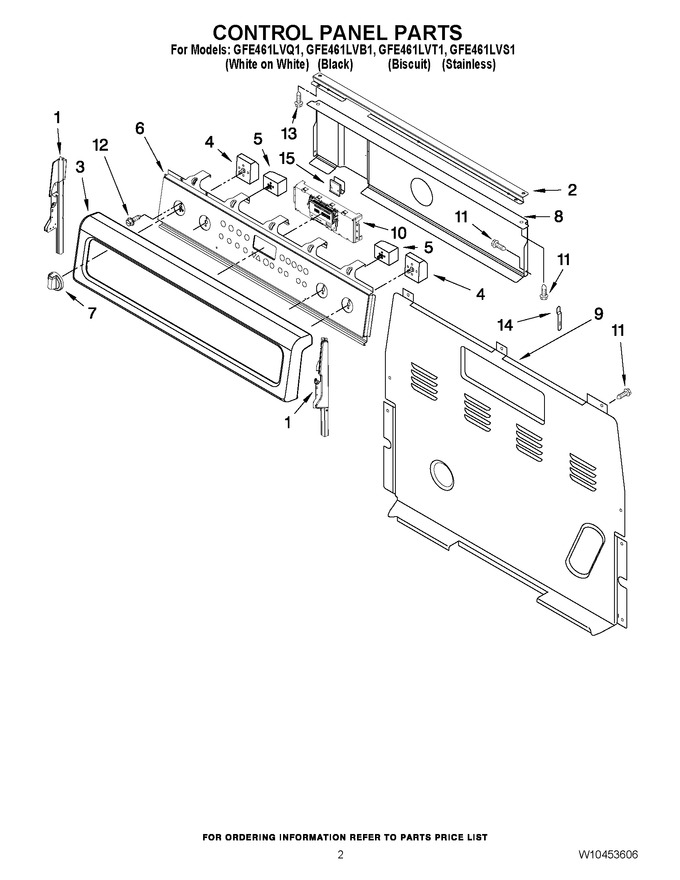

SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer And Rack Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11230612		Endcap (biscuit, Rh)   (Replaces: W10184436)		Appelez-nous	-
1	W11219365		Endcap (white Lh)   (Replaces: W10184433)				$ 38.21
1	W11219370		Endcap (white Rh)   (Replaces: W10184434)				$ 54.75
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)				$ 138.45
1	W11219665		Endcap (black Rh)   (Replaces: W10184438)				$ 40.65
1	W11230611		Endcap (biscuit, Lh)   (Replaces: W10184435)		Appelez-nous	-
2	W10525121		Bracket, Console   (Replaces: W10182322)				$ 88.97
3	W10201507		Panel, Backguard (white)				$ 115.53
3	W10201509		Panel, Backguard (black)				$ 114.95
3	W10201508		Panel, Backguard (biscuit)		Appelez-nous	-
3	W10201510		Panel, Backguard (stainless)				$ 116.83
4	WPW10434452		Switch, Infinite Lf,rf (dual)   (Replaces: W10434452)			Immediately	$ 126.76
5	WP3149404		Switch, Infinite Lr,rr (single)   (Replaces: W10295576)			Immediately	$ 55.31
6	W10224757		Active Overlay Assembly (white)				$ 182.11
6	WPW10224758		Active Overlay Assembly (black)   (Replaces: W10224758)				$ 330.55
6	WPW10224758		Active Overlay Assembly (biscuit)   (Replaces: W10224759)				$ 330.55
7	W10154955		Knob, Infinite (white)				$ 19.10
7	W10155338		Knob, Infinite (biscuit)		Appelez-nous	-
7	W10155337		Knob, Infinite (black)				$ 20.15
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	WP8272473		Cover, Rear   (Replaces: 8272473)				$ 197.14
10	W10157242		Control, Range		Appelez-nous	-
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
12	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
13	WP3400832		Screw (black)   (Replaces: 3196168)			Immediately	$ 7.36
13	3196166		Screw (white)				$ 6.62
14	3196200		Clip, Spring				$ 9.41
15	WP8273564		Clip - Cover   (Replaces: 8273564)				$ 11.39

    View Diagram in Separate Window       Print Part List
