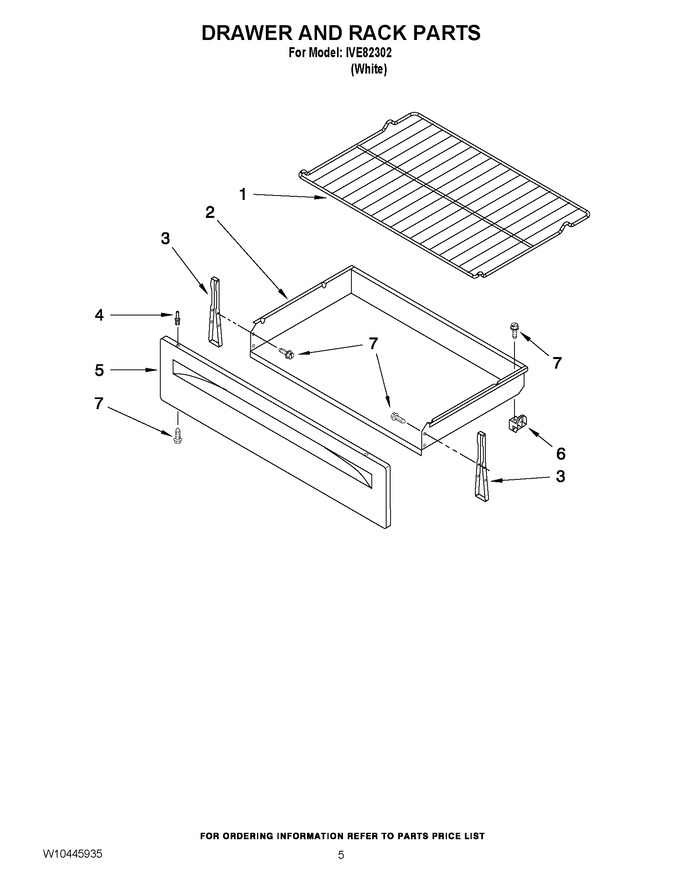

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 52.19 | ||||
| 2 | 9761031 | Drawer, Storage |
|
- | |||||
| 3 | WPW10462912 | Bracket, Drawer (Replaces: W10174396) |
|
Immediately | $ 120.38 | ||||
| 4 | WP3196814 | Rivet, Push (Replaces: 3196814) |
|
Immediately | $ 9.96 | ||||
| 5 | W11219377 | Panel, Drawer Front (Replaces: 8053339) |
|
$ 191.31 | |||||
| 6 | WP8053334 | Glide, Drawer (Replaces: 8053334) |
|
Immediately | $ 7.06 | ||||
| 7 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 7.36 |
