01 - Cooktop Parts

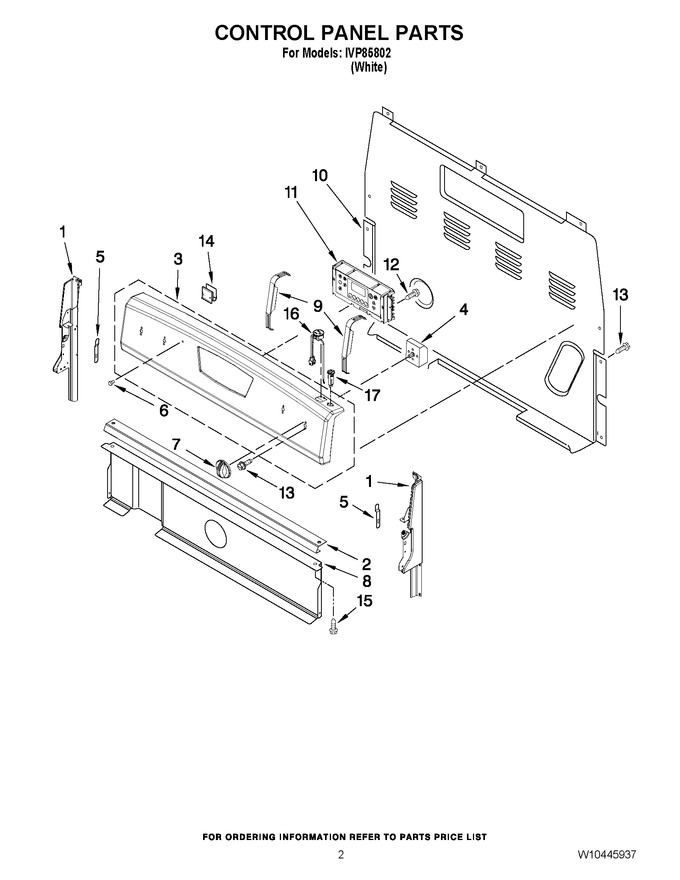

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219370 | Endcap (right) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219365 | Endcap (left) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 2 | W10525121 | Bracket, Console (Replaces: W10182322) |
|
$ 88.97 | |||||
| 3 | W10202192 | Panel, Control |
|
$ 177.90 | |||||
| 4 | WPW10434452 | Switch, Infinite (lf (dual)) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 4 | 5500-287 | Switch, Infinite (rr) (Replaces: 3148953) |
|
Immediately | $ 49.03 | ||||
| 4 | 5500-287 | Switch, Infinite (lr-rf) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 5 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WP9761962 | Knob, Infinite (Replaces: 9761962) |
|
Immediately | $ 18.59 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | W11230932 | Bracket, Mounting Eoc (Replaces: W10138683) |
|
Immediately | $ 76.33 | ||||
| 10 | WP8272473 | Cover, Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | WPW10476687 | Control, Range (Replaces: W10271749) |
|
$ 417.03 | |||||
| 12 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 13 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 14 | WP8273564 | Clip, Cover (Replaces: 8273564) |
|
$ 11.39 | |||||
| 15 | 3196166 | Screw |
|
$ 6.62 | |||||
| 16 | W10849725 | Receptacle, Fused (Replaces: W10203476) |
|
Immediately | $ 100.00 | ||||
| 17 | WP9757601 | Breaker, Circuit (Replaces: 9757601) |
|
Immediately | $ 59.00 |
