Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13107520S Door, Refrigerator (stainless - Rh) Appelez-nous -
2 WP67005626 Caddy-can   (Replaces: 12690102) Special Order $ 73.34

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 74.40

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 79.21

5 12567322SP Gripper, Bucket Appelez-nous -
7 WPW10243391 Nameplate (grey)   (Replaces: W10243391) Special Order $ 52.48

8 W10179478 Gasket, Door (apollo Grey) Appelez-nous -
9 WPW10314517K Handle, Door (stainless)   (Replaces: W10314517) Special Order $ 219.03

10 W10290759 Screw-handle Special Order $ 5.83

11 WP12028505AP Closure, Door (apollo Grey)   (Replaces: 12028505AP) In-Stock Immediately $ 55.31

12 12849115SP Bucket, Shelf (gallon) Appelez-nous -
13 10961006AP Bushing (apollo Grey) Special Order $ 8.69

14 12690503 Retainer, Door Special Order $ 48.08

15 WP98165 Screw   (Replaces: 12990504) Special Order $ 7.71

16 W11401472 Stop, Door (apollo Grey)   (Replaces: 10447114) In-Stock Immediately $ 21.20

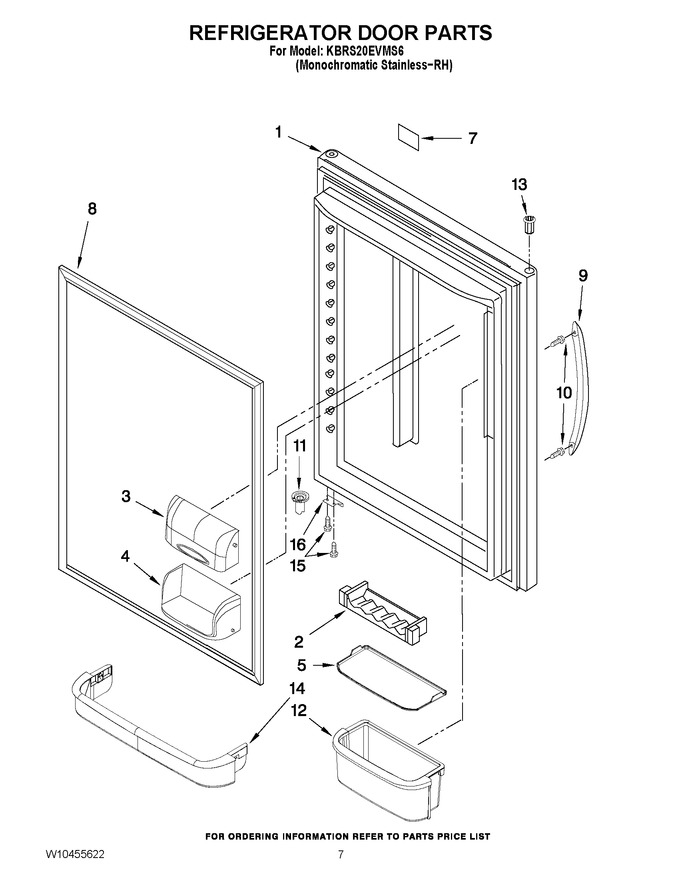

    View Diagram in Separate Window     Print Icon   Print Part List
