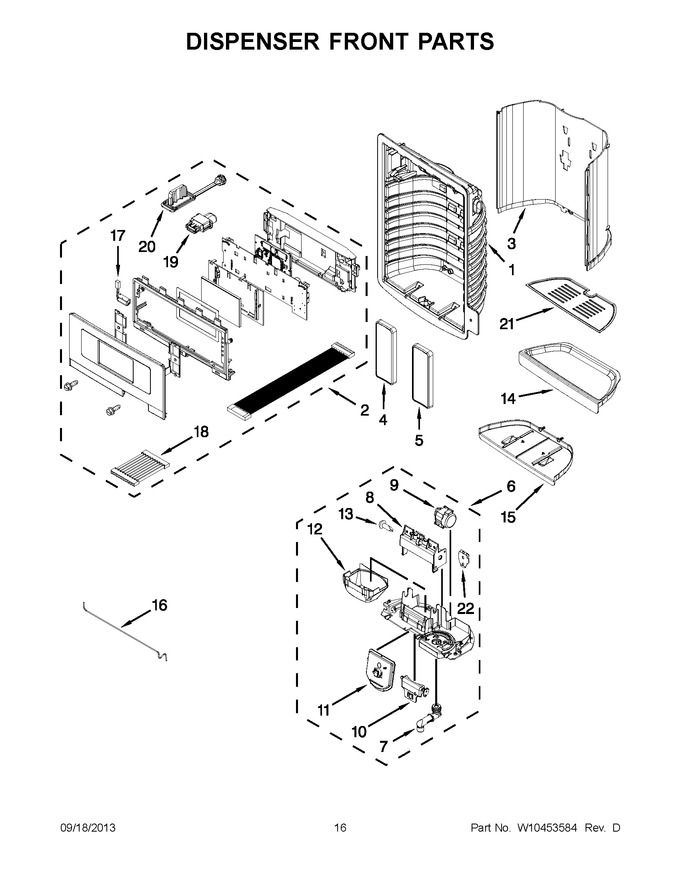

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W10425205 | Ui Assembly (stainless) |
|
$ 802.98 | |||||
| 3 | W10305890 | False Wall, Dispenser (stainless) |
|
$ 83.69 | |||||
| 4 | WPW10368730 | Pad, Ice (stainless) (Replaces: W10334786) |
|
Immediately | $ 287.52 | ||||
| 5 | W10334810 | Pad, Water (stainless) |
|
$ 128.64 | |||||
| 6 | WPW10353552 | Assembly, Seperator (Replaces: W10353552) |
|
$ 185.29 | |||||
| 7 | W11227371 | Assembly, Spigot Body (Replaces: 2316647) |
|
$ 122.74 | |||||
| 8 | W10174827 | Bracket, Ice Door |
|
$ 68.78 | |||||
| 9 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 96.84 | ||||
| 10 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 37.67 | |||||
| 11 | WPW10317279 | Door, Ice (Replaces: W10317279) |
|
$ 18.47 | |||||
| 12 | WPW10435760 | Guide, Ice (Replaces: W10339578) |
|
Immediately | $ 21.55 | ||||
| 13 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.18 | |||||
| 14 | WPW10305897 | Tray, Dispenser (stainless) (Replaces: W10305897) |
|
$ 76.33 | |||||
| 15 | WPW10267863 | Slide, Tray Dispenser (grey) (Replaces: W10267863) |
|
$ 65.90 | |||||
| 16 | W10314372 | Tube, Water (dispenser) |
|
$ 54.47 | |||||
| 17 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 76.01 | |||||
| 18 | W10193350 | Harness-jumper |
|
$ 56.57 | |||||
| 19 | W10278979 | Harness, Usb |
|
- | |||||
| 20 | W10309116 | Cover, Usb |
|
- | |||||
| 21 | W10215957 | Grate, Drip Tray |
|
$ 52.76 | |||||
| 22 | W10174818 | Clip, Motor Coupling |
|
- |
