SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Air Flow Parts


09 - Optional Parts (not Included)

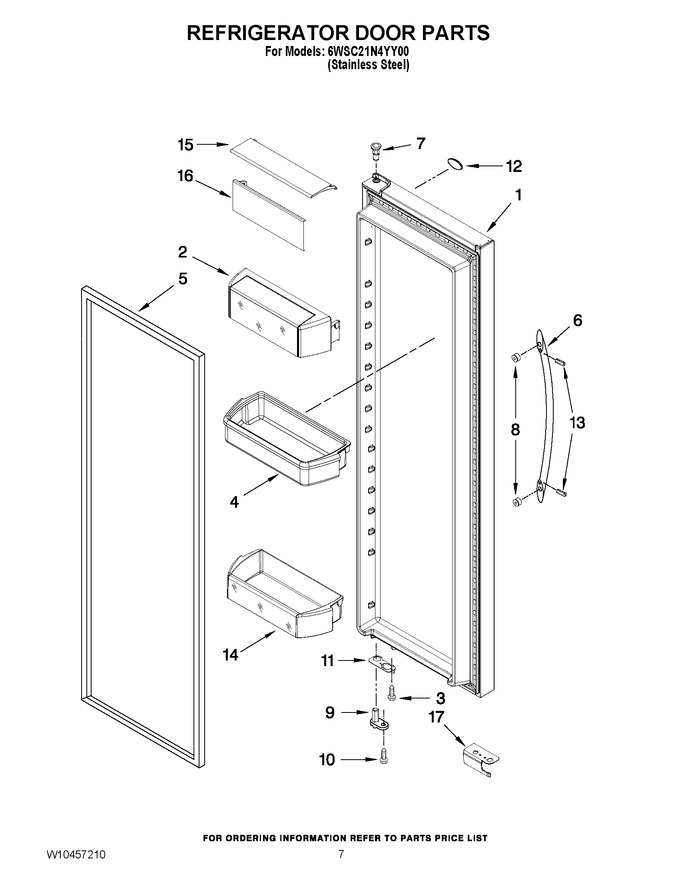

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10445107		Refrigerator Door (includes Item 5) (stainless)		Appelez-nous	-
2	WPW10324760		Door Compartment Assembly   (Replaces: W10316889)				$ 77.04
3	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
4	W10286561		Door Bin, Shallow		Appelez-nous	-
5	W10355582		Door Gasket, Magnetic   (Replaces: W10249916)				$ 307.13
6	WPW10670421		Handle   (Replaces: W10274730)				$ 228.74
7	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.34
8	WPW10170540		Stud, Handle   (Replaces: W10170540)			Immediately	$ 8.69
9	WPW10257203		Door Closer, Upper Cam   (Replaces: W10257203)				$ 11.66
10	WPW10296804		Screw   (Replaces: W10296804)				$ 10.25
11	W11037957		Bracket, Door Stop (chrome)   (Replaces: W10247909)				$ 72.22
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 83.86
13	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 16.59
14	W10309878		Door Bin				$ 77.93
15	WPW10316883		Lid, Compartment   (Replaces: W10316883)				$ 60.90
16	WPW10316885		Window, Door Compartment   (Replaces: W10316885)				$ 67.88
17	W11661847		Cover, Door Stop   (Replaces: W10257218)			Immediately	$ 28.54

    View Diagram in Separate Window       Print Part List
