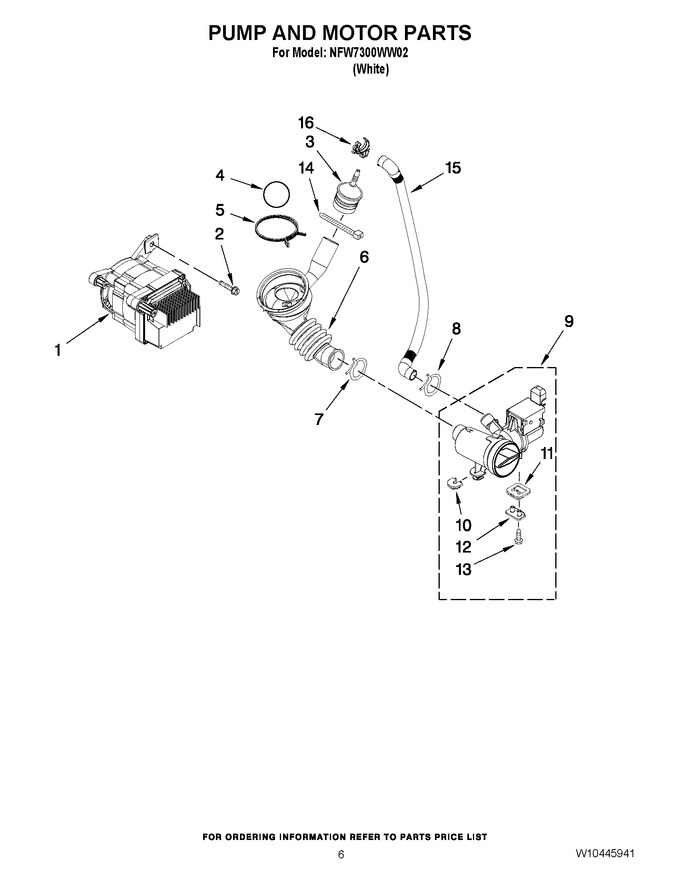

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10315848 | Motor, Drive |
|
$ 342.23 | |||||
| 2 | 8540134 | Bolt, Motor |
|
$ 12.71 | |||||
| 3 | WPW10405608 | Air Trap (includes Item 14) (Replaces: W10405608) |
|
Immediately | $ 7.12 | ||||
| 4 | 8540013 | Ball |
|
$ 20.12 | |||||
| 5 | WP696392 | Clamp (Replaces: 8181734) |
|
$ 8.17 | |||||
| 6 | W11366249 | Hose, Tub To Pump (Replaces: 8540012) |
|
Immediately | $ 46.75 | ||||
| 7 | WP616099 | Clamp, Hose (Replaces: 370448) |
|
Immediately | $ 7.72 | ||||
| 8 | WP285655 | Clamp, Drain Hose (Replaces: W10245724) |
|
Immediately | $ 7.93 | ||||
| 9 | WPW10730972 | Pump (complete) (Replaces: W10130913) |
|
Immediately | $ 187.39 | ||||
| 10 | W10034820 | Foot, Rubber (slider) |
|
$ 12.09 | |||||
| 11 | W10034830 | Foot, Rubber (lock) |
|
- | |||||
| 12 | 8540033 | Cap, Lock Foot |
|
$ 16.99 | |||||
| 13 | 8533964 | Screw, 10-16 X 1.25 |
|
$ 11.34 | |||||
| 14 | WP2262071 | Cable Tie (Replaces: 2262071) |
|
$ 8.32 | |||||
| 15 | WPW10272563 | Hose, Drain- Inner (Replaces: W10272563) |
|
$ 27.64 | |||||
| 16 | 8182209 | Retainer, Drain Hose (Replaces: W10003290) |
|
$ 19.44 |
