SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts

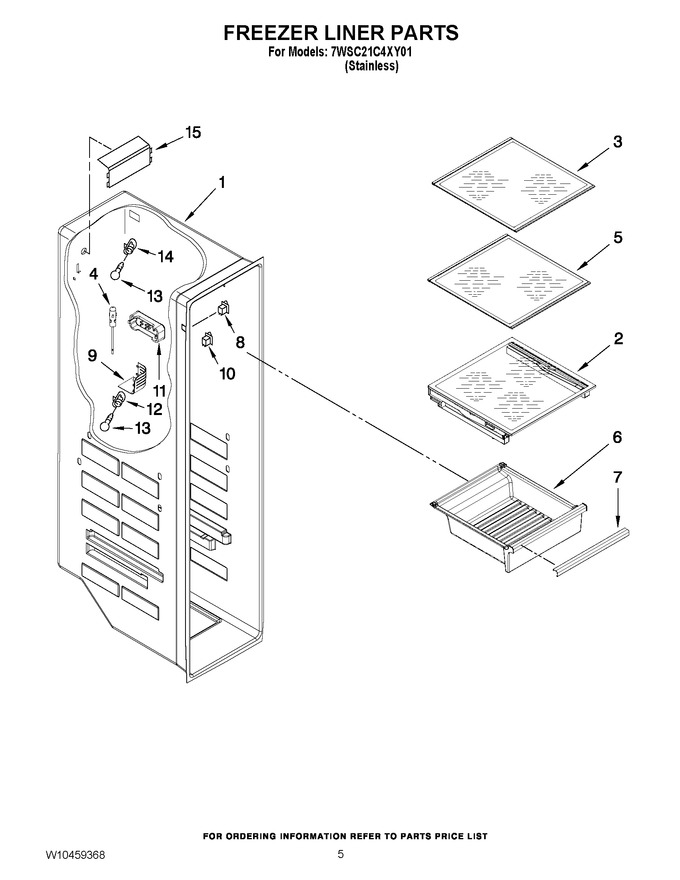

04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Seviceable Part)		Appelez-nous	-
2	W10260977		Cover Assy		Appelez-nous	-
3	WPW10261025		Shelf, Glass Upper   (Replaces: W10261025)				$ 209.35
4	W11724692		Thermistor   (Replaces: W10280386)			Immediately	$ 30.24
5	WPW10261028		Shelf, Glass Lower   (Replaces: W10261028)				$ 207.27
6	W11106313		Pan, Freezer Also Order 7   (Replaces: W10260983)				$ 110.85
7	W11236850		Trim, Handle   (Replaces: W10260986)		Appelez-nous	-
8	W11123943		Switch, Rocker Arm Upper   (Replaces: 2149954)				$ 32.99
9	W10260382		Cover, Light				$ 72.52
10	W11457217		Switch, Rocker Arm (lower)   (Replaces: 2321285)				$ 36.08
11	W10425253		Cover, Thermistor   (Replaces: W10356632)		Appelez-nous	-
12	W11447232		Socket, Light   (Replaces: W10352518)			Immediately	$ 12.48
13	W11679940		Light Bulb   (Replaces: W10311505)			Immediately	$ 10.17
14	W10352516		Socket, Light		Appelez-nous	-
15	WPW10269101		Lens, Light   (Replaces: W10269101)				$ 96.71
