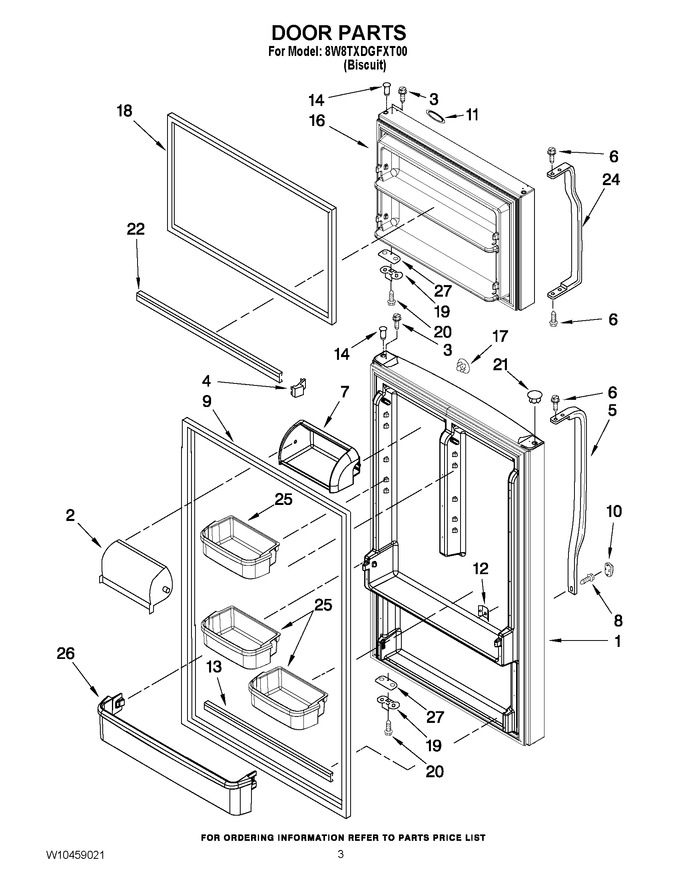

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329720		Refrigerator Door (includes Illus. 9,12, 14 & 24) (biscuit)		Appelez-nous	-
2	2264478		Cover, Utility				$ 32.58
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
4	WP2156003		Trim, Endcap   (Replaces: 2156003)			Immediately	$ 11.93
5	WP2221946T		Handle, Refrigerator (biscuit)   (Replaces: 2221946T)				$ 137.03
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
7	2264477		Utility Compartment				$ 87.34
8	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
9	WP2319264T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190032)			Immediately	$ 193.96
10	2202819T		Screw Cover (biscuit)				$ 8.02
11	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 83.86
12	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.09
13	WPW10234241		Trim, Door Shelf   (Replaces: W10234241)			Immediately	$ 110.12
14	WP2183003		Thimble   (Replaces: 2262054)				$ 7.33
16	W10329721		Freezer Door Biscuit (includes Illus. 14,18 & 24)		Appelez-nous	-
17	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.17
18	WP2319263T		Door Gasket, Magnetic (mist Beige)   (Replaces: W10190031)			Immediately	$ 194.27
19	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
21	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.19
22	WP2266727		Trim, Door   (Replaces: 2266727)			Immediately	$ 108.51
24	WP2215015		Handle, Freezer (biscuit)   (Replaces: 2215015)				$ 137.91
25	W11396038		Bin   (Replaces: 2265126)				$ 145.75
26	WPW10468559		Trivet   (Replaces: 2328217)				$ 98.42
27	WP2258681W		Shim, Door Stop   (Replaces: 2258681W)			Immediately	$ 6.80
