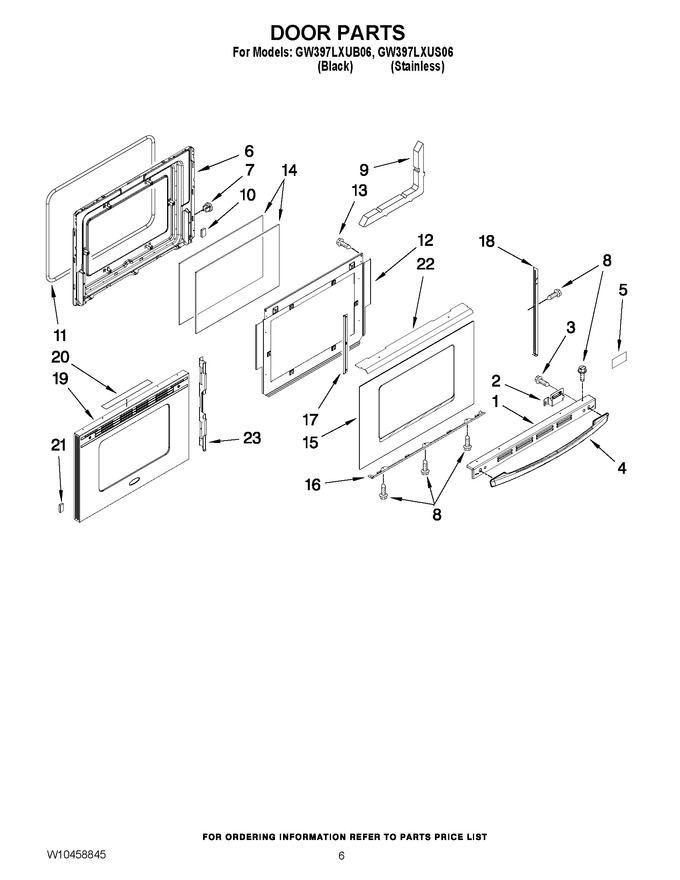

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3608F141-70		Trim, Door Top				$ 96.37
2	3801F832-45		Bracket, Handle (left)				$ 20.07
2	3801F831-45		Bracket, Handle (right)				$ 20.13
3	W11347848		Screw (ss Only)   (Replaces: 7101P376-60)				$ 12.81
4	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 227.39
4	W10118431		Handle, Door (black)				$ 198.68
5	W10175320		Nameplate				$ 41.71
6	2402W312-19		Liner, Door				$ 144.50
7	WP74001574		Nut, Snap   (Replaces: 7103P141-60)			Immediately	$ 10.57
8	WP98008545		Screw, Trim (black)   (Replaces: 7101P633-60)				$ 16.74
8	W11233072		Screw, Trim (stainless)   (Replaces: 7101P638-60)			Immediately	$ 13.25
9	7002P246-60		Insulation, Door				$ 58.49
10	WP74005546		Spacer   (Replaces: 8010P130-60)				$ 9.95
11	WPW10162384		Seal, Door   (Replaces: W10162384)			Immediately	$ 92.59
12	3601F373-51		Baffle, Retainer				$ 256.44
13	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
14	74003645		Glass, Inner   (Replaces: 7902P436-60)			Immediately	$ 201.23
15	7902P815-60		Glass, Tape & Logo		Appelez-nous	-
16	3807F708-70		Trim, Door Bottom				$ 63.97
17	3801F886-51		Bracket, Glass				$ 38.25
18	3608F116-70		Trim, Door Side (black, Right)				$ 49.75
18	3608F117-70		Trim, Door Side (black, Left)				$ 49.73
19	7760P242-60		Pnl, Oven Dr(ss)				$ 242.20
20	74011048		Insulation, Foil (ss Only)   (Replaces: 7002P463-60)				$ 75.32
21	7112P034-60		Clip, Glass		Appelez-nous	-
22	3604F418-51		Shield, Door				$ 77.46
23	3804F293-45		Retainer, Glass (ss Only)				$ 16.56
