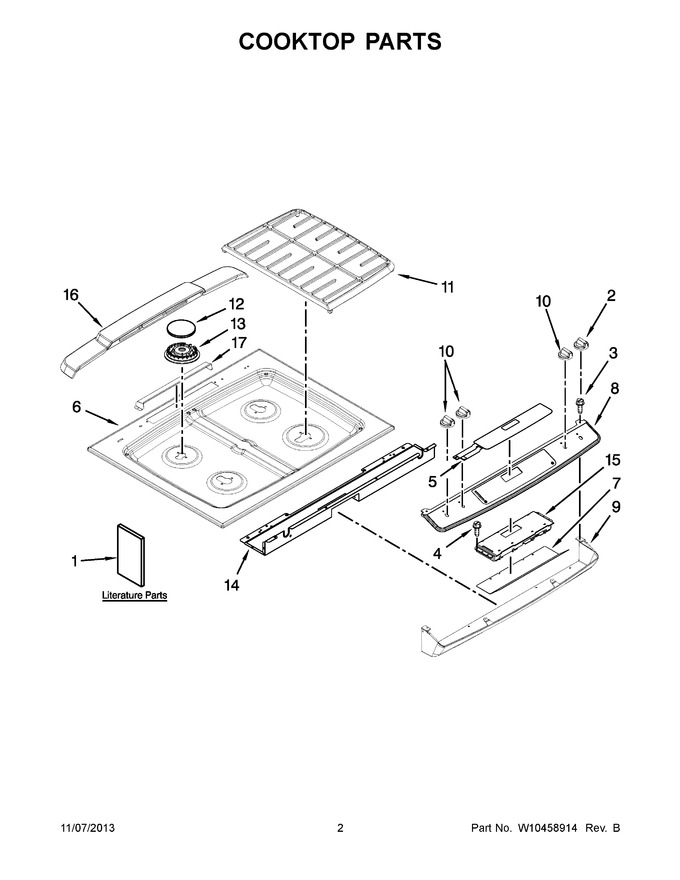

02 - Cooktop Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8113P679-60 | Guide, Use & Care |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | 8113P681-60 | Installation Instructions |
|
- | |||||
| 2 | W10177201 | Knob (black) (Replaces: 7733P532-60) |
|
$ 18.93 | |||||
| 3 | 7101P501-60 | Screw |
|
- | |||||
| 4 | WP59002061 | Screw (Replaces: 7101P077-60) |
|
$ 7.36 | |||||
| 5 | WPW10207933 | Switch, Membrane (black) (Replaces: W10207933) |
|
$ 290.48 | |||||
| 6 | W10202563 | Top (black) |
|
- | |||||
| 7 | W10166279 | Shield, Control |
|
- | |||||
| 8 | 7720P531-60 | Panel, Control (black) |
|
$ 139.61 | |||||
| 8 | W10279069 | Panel, Control (stainless) |
|
$ 201.73 | |||||
| 9 | W10185606 | Panel, Lower Control (black) |
|
$ 130.08 | |||||
| 10 | WP7733P526-60 | Knob (black) (Replaces: 7733P526-60) |
|
Immediately | $ 22.64 | ||||
| 11 | 7518P485-60 | Grate (black) |
|
- | |||||
| 12 | WPW10244447 | Assembly, Burner Cap (black) (Replaces: W10244447) |
|
$ 180.81 | |||||
| 13 | WPW10406797 | Burner Head, Rapid (12k) (left Front & Right Rear) (Replaces: W10406797) |
|
$ 83.62 | |||||
| 13 | WPW10406243 | Burner Head, Auxiliary (6k) (left Rear) (Replaces: W10406243) |
|
Immediately | $ 35.17 | ||||
| 13 | WPW10406878 | Burner Head, Ultra Rapid (17.5k) (right Front) (Replaces: W10406878) |
|
$ 96.73 | |||||
| 14 | 3807F769-51 | Support, Control Panel |
|
- | |||||
| 15 | 8507P391-60 | Control, (erc) |
|
$ 421.07 | |||||
| 16 | 7724P201-60 | Cover, Vent (black) |
|
- | |||||
| 17 | 3601F221-45 | Baffle, Vent Cover |
|
$ 28.30 |
