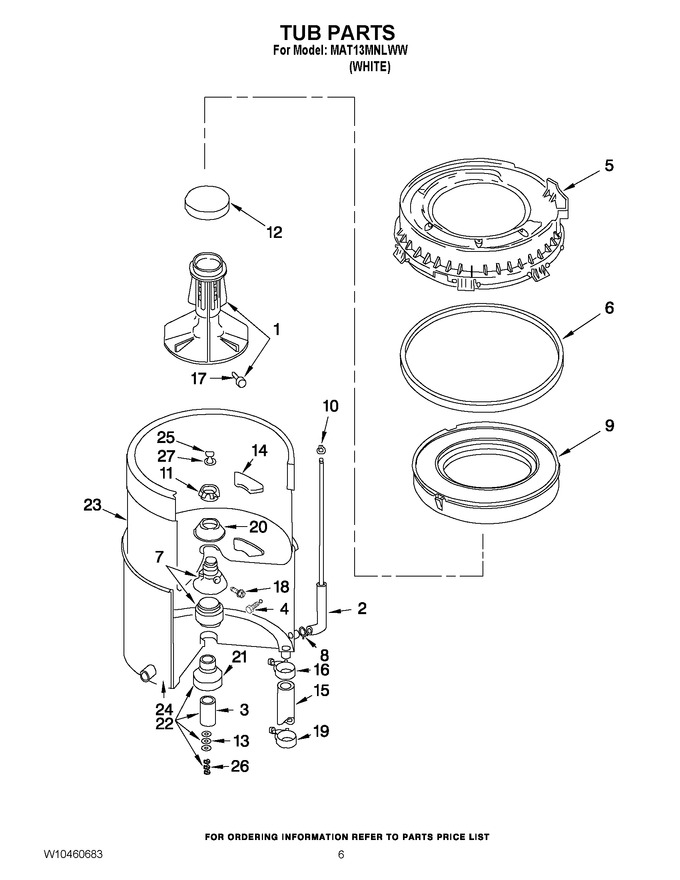

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP208543		Agitator (w/lock Screw)   (Replaces: 208543)				$ 240.15
2	WP22001619		Tube, Air   (Replaces: 22001619)				$ 79.52
3	211130		Liner, Tub Bearing				$ 724.10
3	W10175938		Bolt & Gasket Assembly (long)   (Replaces: 205254)			Immediately	$ 7.97
4	W10175939		Bolt & Gasket Assembly (short)   (Replaces: 200744)				$ 9.81
5	22001299		Tub Cover & Gasket Assembly				$ 263.51
6	WP22001007		Gasket, Tub Cover---s   (Replaces: Y22001201)			Immediately	$ 83.34
7	22001648		Mounting Stem And Seal Kit		Appelez-nous	-
8	WP285655		Clamp, 1-1/16``   (Replaces: 211641)			Immediately	$ 7.93
9	22001142		Ring, Balance (w/concrete)				$ 116.24
10	WP596669		Clamp, Water Level Switch Tube   (Replaces: 410296)			Immediately	$ 7.94
11	211047		Nut, Clamping (inner Tube)		Appelez-nous	-
12	216251		Cap, Agitator (wht)		Appelez-nous	-
13	211100		Washer, Cushion		Appelez-nous	-
14	215980		Plug, Filter Hole				$ 64.66
15	WP213045		Drain Hose-tub To Pump   (Replaces: 213045)			Immediately	$ 48.43
16	WP285655		Clamp, Hose   (Replaces: 22001640)			Immediately	$ 7.93
17	206478		Screw & Washer For Agitator		Appelez-nous	-
18	22001423		Screw, Set (torx)				$ 47.82
19	WP285655		Clamp, Hose   (Replaces: 22001640)			Immediately	$ 7.93
20	211210		Washer,clamping Nut(stainless)				$ 5.84
21	6-2040130		Bearing, Tub   (Replaces: 200824)			Immediately	$ 90.41
22	6-2040130		Tub Bearing Repair Kit   (Replaces: 204013)			Immediately	$ 90.41
23	22001139		Tub, Inner (ex. Large)				$ 146.71
24	22001114		Tub, Outer (ex. Large)		Appelez-nous	-
25	Y015667		Retaining Ring				$ 8.70
26	Y054867		Washer, Lock		Appelez-nous	-
27	WPY015666		Washer,retaining(center Seal)-   (Replaces: Y015666)				$ 6.96

    View Diagram in Separate Window       Print Part List
