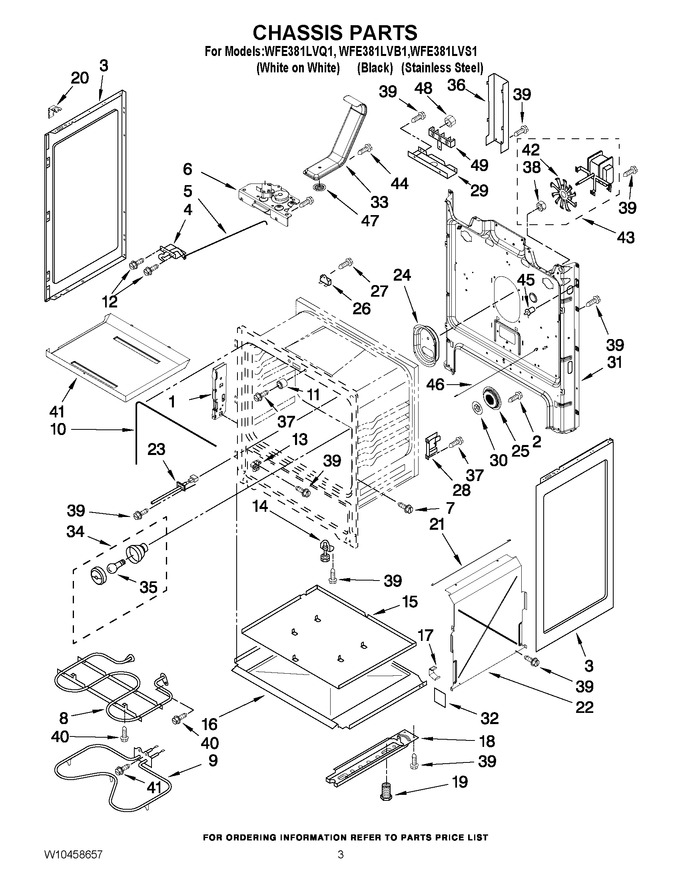

03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Brkt-mntg,dr Hnge   (Replaces: W10289077)			Immediately	$ 8.39
2	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
3	W11730303		Panel, Side (black)   (Replaces: W10322770)			Immediately	$ 160.65
3	WPW10575396		Panel, Side (white)   (Replaces: W10322769)				$ 182.19
4	WP9761013		Latch, Door   (Replaces: 9761013)				$ 230.72
5	W10078380		Rod, Latch				$ 85.42
6	WPW10107830		Latch Asy, Rear   (Replaces: W10107830)				$ 305.53
7	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
8	W10856603		Element, Broil   (Replaces: W10308476)			Immediately	$ 172.30
9	WP9755770		Element, Bake   (Replaces: W10308474)			Immediately	$ 174.47
10	W11542153		Seal, Oven Door   (Replaces: 8522416)			Immediately	$ 45.18
11	W10877054		Spacer, Door   (Replaces: 9758701)			Immediately	$ 50.45
12	W11169708		Screw   (Replaces: 3196560)				$ 13.36
13	WPW10114344		Glide, Drawer   (Replaces: W10114344)			Immediately	$ 7.71
14	WPW10341186		Foot, Front   (Replaces: W10341186)			Immediately	$ 29.33
15	W10134125		Shield, Insul. Retainer				$ 143.43
16	W10134121		Tray, Insulation				$ 40.28
17	W10137382		Clip, Panel			Immediately	$ 43.58
18	W11818353		Rail, Base   (Replaces: 9760314)				$ 56.39
19	WPW10058460		Foot, Rear   (Replaces: W10058460)			Immediately	$ 7.42
20	W10183541		Clip, Mounting		Appelez-nous	-
21	W10727426		Rod-insl Retainer   (Replaces: W10196451)			Immediately	$ 76.59
22	W10450380		Retainer, Side   (Replaces: 9758238)		Appelez-nous	-
23	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 96.15
24	W10134126		Bracket, Fan				$ 21.58
25	WPW10134124		Cover, Fan   (Replaces: W10134124)			Immediately	$ 92.33
26	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 45.09
27	3196172		Screw			Immediately	$ 12.12
28	W10404688		Support, Oven   (Replaces: W10355173)				$ 15.92
29	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
30	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.52
31	9757029		Back, Main		Appelez-nous	-
32	W10646923		Card, Insulator   (Replaces: 9759689)				$ 17.61
33	WPW10134285		Vent Tube Asm   (Replaces: W10134285)			Immediately	$ 236.70
34	W11594027		Light Socket Assy   (Replaces: 3196701)			Immediately	$ 78.31
35	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
36	WPW10326122		Cover, Box   (Replaces: W10326122)				$ 125.64
37	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
38	W11548755		Nut   (Replaces: W10213748)				$ 13.84
39	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
40	WP3196174		Screw   (Replaces: 3196174)			Immediately	$ 7.60
41	W10183712		Tray-bake, Hidden				$ 219.56
42	W10758272		Blade, Fan   (Replaces: W10116351)			Immediately	$ 7.12
43	W11582241		Fan, Motor Cnvctn   (Replaces: W10167917)			Immediately	$ 121.26
44	WP3196154		Screw   (Replaces: 3196154)				$ 7.60
45	9757238		Switch - Door				$ 64.08
46	9757239		Rod, Door Switch Rear Mount				$ 86.73
47	9761301		Screen, Catalyst				$ 133.11
48	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.80
49	WPW10245259		Block, Terminal   (Replaces: W10245259)			Immediately	$ 31.65
NI	WPW10208653		Insulation, Wrap   (Replaces: W10208653)			Immediately	$ 52.37
NI	W10326347		Insulation, Back		Appelez-nous	-
NI	W11684918		Insulation, Vent   (Replaces: W10333344)			Immediately	$ 31.93
