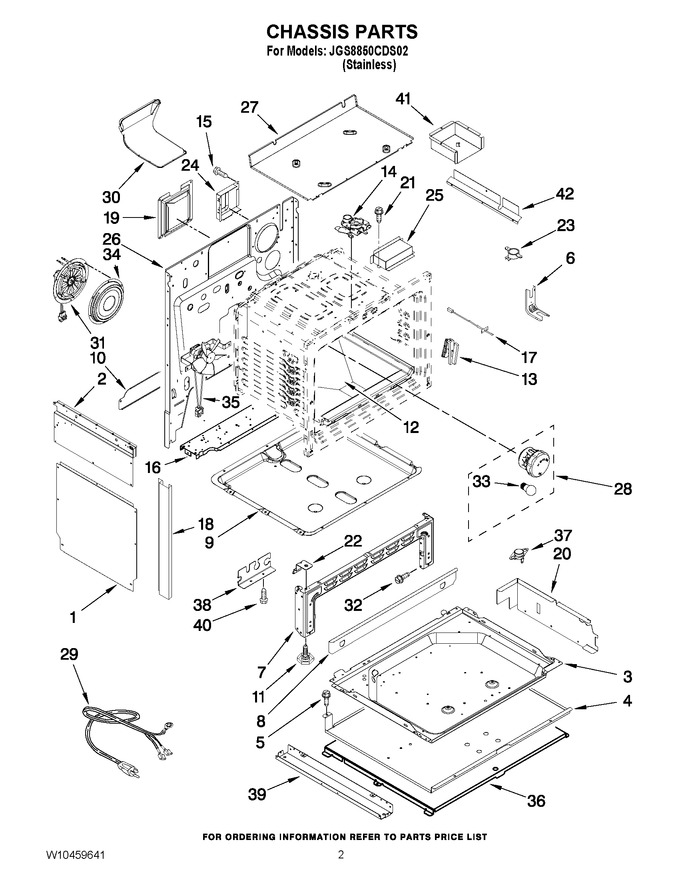

01 - Cooktop Parts


02 - Chassis Parts


03 - Manifold Parts


04 - Door Parts


05 - Drawer And Rack Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3604F416-51		Shield, Lower Side				$ 59.21
2	2618F201-51		Panel, Shield (left)				$ 32.51
2	2618F206-51		Panel, Shield (right)				$ 135.68
3	3804F245-51		Retainer, Bottom				$ 97.02
4	3604F326-45		Shield, Drawer		Appelez-nous	-
5	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.81
6	WP3801F656-51		Bracket, Anti-tip   (Replaces: 3801F656-51)			Immediately	$ 5.50
7	W10271711		Oven, Front Lower				$ 144.40
8	3601F251-45		Baffle, Oven Front		Appelez-nous	-
9	3401F044-45		Pan, Burner		Appelez-nous	-
10	3826F066-51		Extention, Back				$ 7.82
11	WP74010805		Foot, Leveler   (Replaces: 7101P660-60)				$ 6.80
12	WP2205F054-19		Bottom, Oven   (Replaces: 2205F054-19)				$ 696.66
13	74011475		Hinge   (Replaces: 7106P143-60)			Immediately	$ 120.25
14	WPW10274035		Latch Assembly   (Replaces: W10274035)				$ 317.58
15	74003975		Screw, Latch Lever   (Replaces: 7101P375-60)				$ 12.63
16	3807F640-51		Support, Valve/reg				$ 31.03
17	12001655		Sensor, Short   (Replaces: 7430P041-60)			Immediately	$ 41.01
18	3608F138-70		Trim, Side				$ 66.28
19	3804F300-51		Retainer, Conv Insulation				$ 62.45
20	W10256425		Shield, Gas (lower Back)		Appelez-nous	-
21	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
22	3807F727-45		Support, Oven Btm.				$ 18.96
23	7450P030-60		Switch, Limit			Immediately	$ 91.62
24	4005F810-51		Cover, Access				$ 248.98
25	4005F750-51		Cover, Door Lock		Appelez-nous	-
26	3804F313-51		Back, Main Gas		Appelez-nous	-
27	4011F496-51		Bottom,burner Box		Appelez-nous	-
28	7407P180-60		Light Assembly		Appelez-nous	-
29	7402P086-60		Cord, Power		Appelez-nous	-
30	8026P095-60		Box, Assy Vent				$ 60.62
31	W10206590		Fan, Covection				$ 225.55
32	WP4159193		Screw   (Replaces: 7101P017-60)				$ 4.56
33	8009		Bulb-oven   (Replaces: 7407P103-60)			Immediately	$ 16.80
34	3605F350-19		Cover, Fan		Appelez-nous	-
35	WPW10586440		Fan, Cooling   (Replaces: W10317679)				$ 301.08
36	3604F327-51		Shield, Heat Pouch				$ 71.86
37	7403P657-60		Switch, Hi-limit		Appelez-nous	-
38	W10256422		Bracket,pwr Supply		Appelez-nous	-
39	4020W035-80		Pedestal, Bottom				$ 106.61
40	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
41	4005F807-51		Cover,burner Box (dual Ring Bnr)		Appelez-nous	-
42	3826F034-51		Extension, Heat Shield		Appelez-nous	-
NI	7002P445-60		Insulation, Back		Appelez-nous	-
NI	7002P443-60		Insulation, Lower Sides				$ 41.31
NI	7002P471-60		Insulation, Drawer		Appelez-nous	-
NI	7002P474-60		Insulation, Front Frame		Appelez-nous	-
