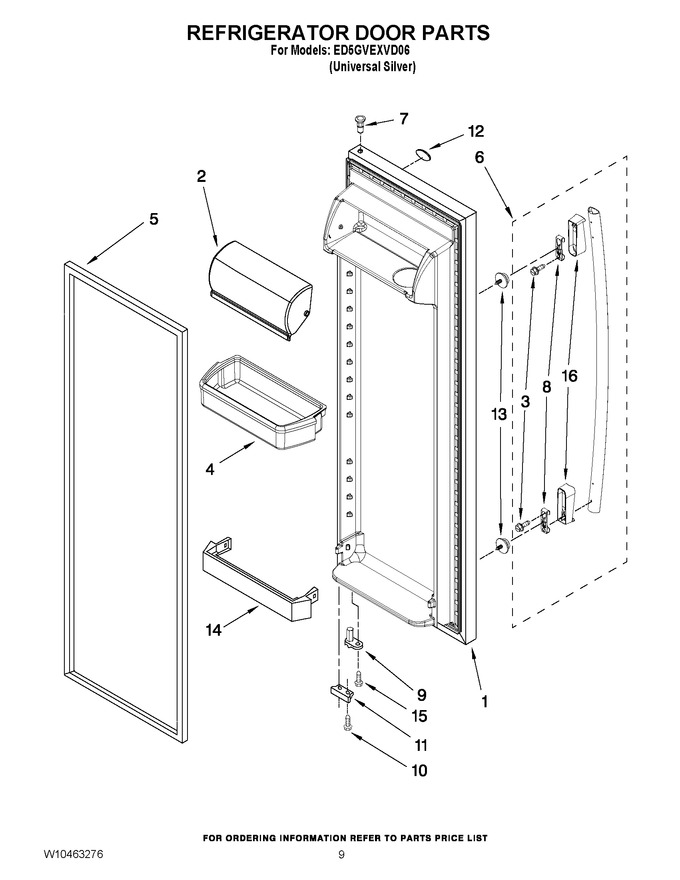

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10355456 | Refrigerator Door (includes Item 5) Universal Silver |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 3 | WP8533988 | Screw (Replaces: W10155511) |
|
Immediately | $ 7.90 | ||||
| 4 | WP2187172 | Door Bin (Replaces: 2187172) |
|
Immediately | $ 40.58 | ||||
| 5 | 2159083 | Door Gasket Magnetic (Replaces: 2221313) |
|
$ 299.48 | |||||
| 6 | WPW10127762 | Handle Assy (Replaces: W10127762) |
|
$ 180.16 | |||||
| 7 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 7.34 | |||||
| 8 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 32.90 | |||||
| 9 | WP2182179 | Door Closer (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 10 | WPW10142233 | Screw (Replaces: W10142233) |
|
$ 8.04 | |||||
| 11 | W10219812 | Bracket, Door Stop |
|
$ 24.48 | |||||
| 12 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 83.86 | ||||
| 13 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 14 | WP2156022 | Trivet (Replaces: 2156022) |
|
Immediately | $ 70.75 | ||||
| 15 | WP3400012 | Screw (Replaces: W10142285) |
|
$ 7.43 | |||||
| 16 | W10127770 | Endcap |
|
- |
