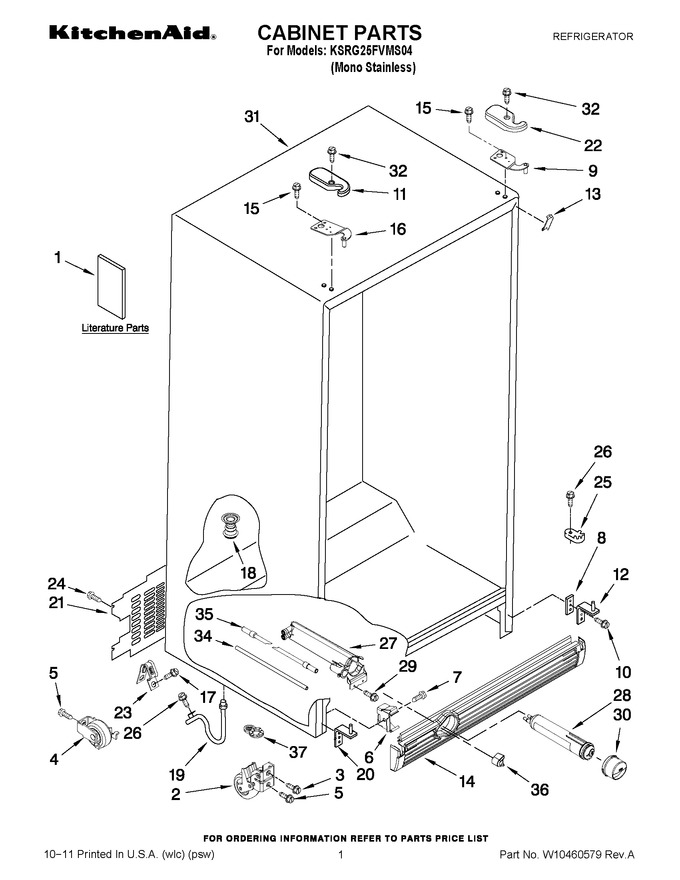

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2220407 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10206334 | Inst Sheet, Door Removal |
|
- | |||||
| 1 | W10321472 | Use & Care Guide |
|
- | |||||
| 1 | W10238215 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10320895 | Energy Guide |
|
- | |||||
| 2 | 2174748 | Front Roller |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 12.98 | |||||
| 4 | WPW10250570 | Roller (rear) (Replaces: W10250570) |
|
$ 37.96 | |||||
| 5 | WP489427 | Screw (Replaces: W10146358) |
|
$ 7.06 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.30 | ||||
| 7 | WPW10141604 | Screw (Replaces: W10141604) |
|
$ 7.97 | |||||
| 8 | WP2181911 | Shim (Replaces: 2156056) |
|
$ 31.38 | |||||
| 9 | WP2203771 | Hinge Top, Rc (Replaces: 2203771) |
|
$ 92.82 | |||||
| 10 | WP489497 | Screw (Replaces: W10142235) |
|
Immediately | $ 26.18 | ||||
| 11 | W10331626 | Hinge Cover, Fc Apollo Grey |
|
- | |||||
| 12 | W10138965 | Hinge Bottom (rc) |
|
$ 84.52 | |||||
| 13 | W10143043 | Filler, Wrapper (apollo Grey) |
|
- | |||||
| 14 | WPW10184890 | Grille (apollo Grey) (Replaces: W10184890) |
|
$ 149.98 | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 16 | WP2203770 | Hinge, Top Fc (Replaces: 2203770) |
|
$ 90.27 | |||||
| 17 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 18 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 48.11 | ||||
| 19 | W11512417 | Tube, Extension (Replaces: W10153550) |
|
$ 32.88 | |||||
| 20 | 2303141 | Hinge Bottom (fc) |
|
$ 234.90 | |||||
| 21 | WP2188755 | Cover, Unit (Replaces: 2188735) |
|
$ 128.44 | |||||
| 22 | W10331630 | Hinge Cover, Rc (apollo Grey) |
|
- | |||||
| 23 | 549193 | Clamp, Service Cord |
|
$ 12.65 | |||||
| 24 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 25 | WPW10329686 | Door Closer, Lower Cam (Replaces: 2155311) |
|
Immediately | $ 5.31 | ||||
| 26 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.27 | |||||
| 27 | WPW10121138 | Housing, Water Filter (Replaces: 2260507) |
|
Immediately | $ 103.15 | ||||
| 28 | EDR3RXD1B | Water Filter (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 29 | WP489500 | Screw (Replaces: 489500) |
|
$ 7.35 | |||||
| 30 | WP2260518MG | Cap, Water Filter (midnight Grey) (Replaces: 2260502MG) |
|
$ 52.95 | |||||
| 31 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 32 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 9.86 | |||||
| 34 | WPW10350006 | Tube, Filter Outlet (Replaces: W10330344) |
|
$ 109.19 | |||||
| 35 | W10281289 | Tube, Filter Inlet |
|
$ 57.80 | |||||
| 36 | 2260503MG | Button, Water Filter (midnight Grey) |
|
$ 25.52 | |||||
| 37 | W11778262 | Door Closer, (fc) (Replaces: 2223751) |
|
$ 10.47 |
