SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

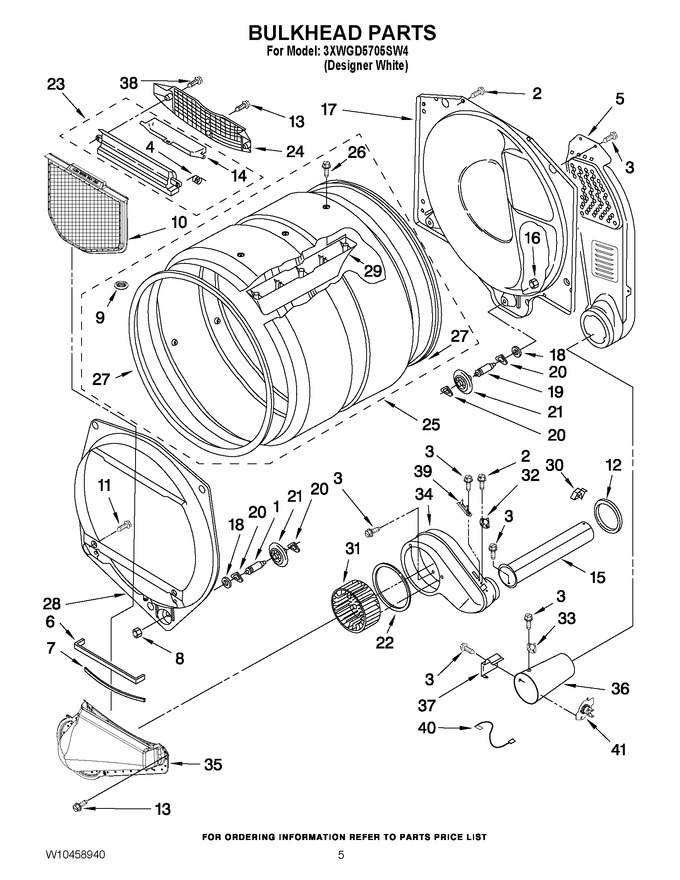

03 - Bulkhead Parts
04 - W10096909 Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: W10359271) |
|
Immediately | $ 55.99 | ||||
| 2 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 3 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 4 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.12 | |||||
| 5 | W11168650 | Air Duct Assembly (Replaces: 3394346) |
|
$ 97.66 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.53 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.53 | ||||
| 8 | W11812294 | Nut,3/8 X 16(r.h.) (Replaces: 3934666) |
|
$ 11.49 | |||||
| 9 | W10665050 | Cap-plug (Replaces: W10128544) |
|
$ 18.14 | |||||
| 10 | W10120998 | Plug Screen, Lint (Replaces: W10049370) |
|
$ 74.66 | |||||
| 11 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.45 | ||||
| 12 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 21.06 | |||||
| 13 | WP3387230 | Screw, 10-16 X 3/4 (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 14 | W11222846 | Door, Lint Screen (Replaces: 3394984) |
|
Immediately | $ 192.52 | ||||
| 15 | 279936 | Exhaust Pipe (Replaces: 8066224) |
|
$ 138.76 | |||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | W11299300 | Bulkhead, Rear (Replaces: 3387809) |
|
$ 330.86 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: W10359272) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 25.65 | ||||
| 22 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 23 | W11129408 | Outlet Housing Assembly (Replaces: 3394985) |
|
$ 51.20 | |||||
| 24 | W11086603 | Grille, Outlet (Replaces: 8299979) |
|
Immediately | $ 33.21 | ||||
| 25 | W10545923 | Complete Drum Assembly (Replaces: 8528998) |
|
$ 412.74 | |||||
| 26 | W10853898 | Screw, 11-16 X 3/ (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 63.74 | ||||
| 28 | WP697557 | Bulkhead, Rear (Replaces: 697557) |
|
$ 196.59 | |||||
| 29 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 86.01 | ||||
| 30 | W11684573 | Clip-exhaust (Replaces: 8572105) |
|
$ 7.35 | |||||
| 31 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 147.43 | ||||
| 32 | WPW10168174 | Thermostat Internal Bias (Replaces: W10168174) |
|
$ 129.21 | |||||
| 33 | W10853395 | Thermostat, High-limit 255 F (123° C) (Replaces: W10206703) |
|
- | |||||
| 34 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 96.11 | |||||
| 35 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 195.73 | |||||
| 36 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 166.76 | |||||
| 37 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 46.72 | ||||
| 38 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 39 | WP3392519 | Thermal-fuse (91°c) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 40 | WP3401707 | Jumper, Tco Hi-limit (Replaces: 3401707) |
|
$ 77.93 | |||||
| 41 | WPW10181549 | Thermal-cutoff (Replaces: W10181549) |
|
$ 101.41 |
