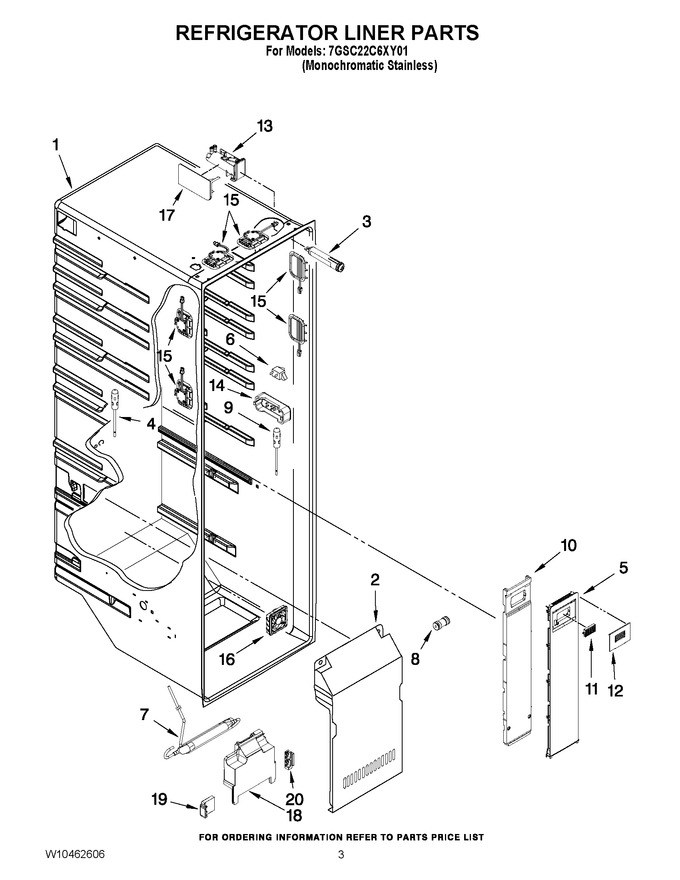

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10859809		Cover, Evap   (Replaces: W10251454)				$ 237.08
3	EDR1RXD1B		Water Filter   (Replaces: W10295370)			Immediately	$ 49.99
4	W10316760		Thermistor, Evap Fan   (Replaces: W10323459)			Immediately	$ 73.67
5	W10316751		Cover, Air Tower		Appelez-nous	-
6	W11384469		Switch Rocker Arm   (Replaces: C3680314)			Immediately	$ 35.18
7	W11204869		Reservoir   (Replaces: W10279843)				$ 150.90
8	WP2300868		Connector   (Replaces: W10271541)			Immediately	$ 33.29
9	W11724692		Thermistor   (Replaces: W10280385)			Immediately	$ 30.24
10	W10316746		Tower, Air		Appelez-nous	-
11	W10311524		Air Filter   (Replaces: W10315189)			Immediately	$ 12.91
12	W10341548		Air Filter Cover				$ 72.68
13	WPW10238123		Housing, Water Filter   (Replaces: W10238123)				$ 215.83
14	WPW10425252		Cover, Thermistor   (Replaces: W10356630)			Immediately	$ 79.54
15	W11683241		Led Light Assy   (Replaces: W10279030)			Immediately	$ 244.77
16	W10451901		Fan Assy, Evap   (Replaces: W10360454)				$ 243.13
17	W10300484		Cover, Water Filter				$ 116.99
18	W10360465		Evap Insulation, W/fan Assy		Appelez-nous	-
19	W11028224		Support, Evap Lh   (Replaces: W10223366)				$ 10.78
20	W10837626		Support, Evap Rh   (Replaces: W10223364)				$ 68.27
