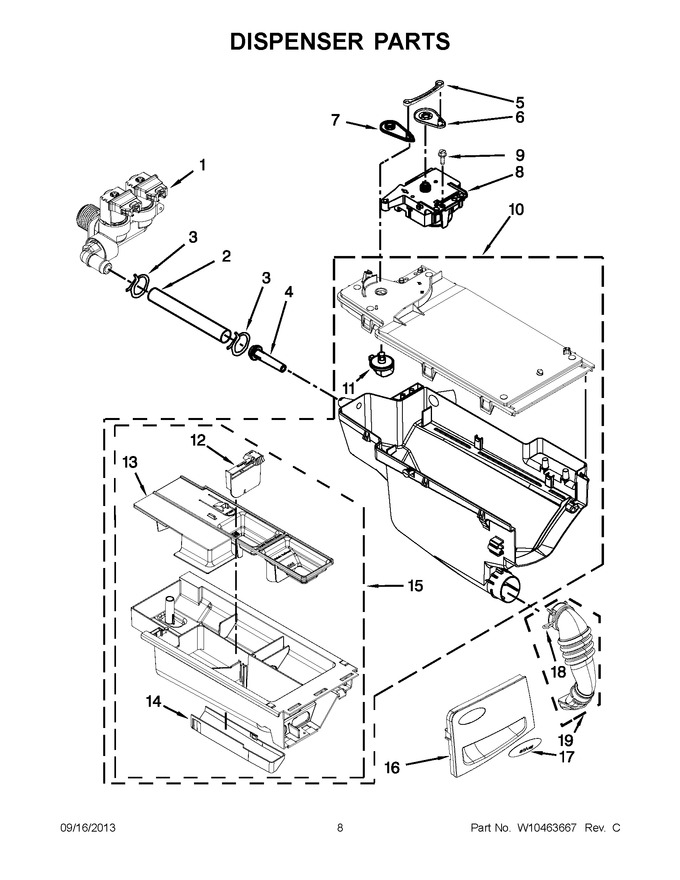

05 - Dispenser Parts


06 - Tub And Basket Parts


07 - Pump Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10289387		Valve, Water Inlet   (Replaces: W10289387)			Immediately	$ 157.95
2	W10538835		Hose, Inlet Valve To Dispenser				$ 30.51
3	WP596669		Clamp, Hose   (Replaces: W10096852)			Immediately	$ 8.82
4	WP8183181		Nozzle, Inlet   (Replaces: 8183181)				$ 94.82
5	WP8183183		Lever, Connection   (Replaces: 8183183)				$ 94.74
6	WP8183184		Cam, Actuator   (Replaces: W10003190)				$ 94.74
7	W10183517		Lever, Water Distribution				$ 9.94
8	WPW10352973		Actuator   (Replaces: W10163975)			Immediately	$ 166.76
9	WP8540282		Screw   (Replaces: 8540282)				$ 12.14
10	W10433522		Housing, Dispenser Assembly		Appelez-nous	-
11	WP8181712		Nozzle, Distribution   (Replaces: W10003110)				$ 93.57
12	W10433529		Separator, With Selection Slider		Appelez-nous	-
13	W10433526		Siphon, Bleach/softener		Appelez-nous	-
14	W10003140		Cover, Detergent Drawer				$ 89.91
15	W10433523		Drawer, Detergent (complete)		Appelez-nous	-
16	W10411194		Handle, Drawer (includes Item 17) (red)		Appelez-nous	-
17	W10411195		Badge		Appelez-nous	-
18	W10239910		Clamp, Hose			Immediately	$ 65.30
19	WPW10239966		Hose, Dispenser To Bellow   (Replaces: W10239966)				$ 87.10
