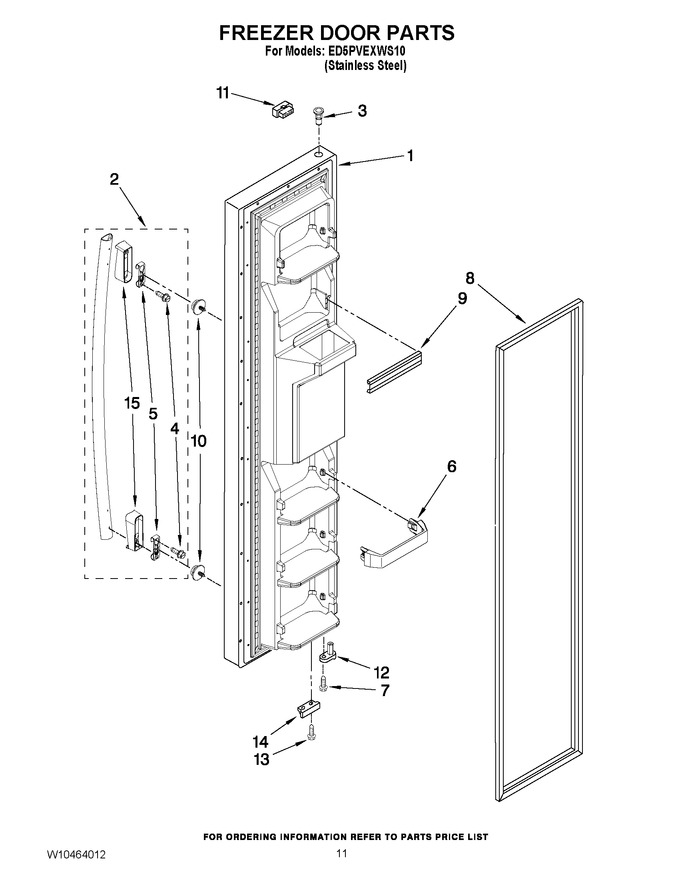

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10329870 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2 | WPW10257118K | Handle, Assy (Replaces: W10257118) |
|
$ 177.29 | |||||
| 3 | WP2182181 | Thimble Top (Replaces: 2182181) |
|
$ 7.34 | |||||
| 4 | W10267047 | Screw (Replaces: W10201588) |
|
$ 12.12 | |||||
| 5 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 32.90 | |||||
| 6 | WP2309718 | Trim, Door (Replaces: 2309718) |
|
$ 55.34 | |||||
| 7 | WP3400012 | Screw (Replaces: W10142285) |
|
$ 7.43 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (Replaces: 2221314) |
|
$ 299.24 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307490) |
|
Immediately | $ 21.84 | ||||
| 10 | WPW10288153 | Screw (Replaces: W10288153) |
|
Immediately | $ 8.69 | ||||
| 11 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 22.35 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.48 | ||||
| 13 | WPW10142233 | Screw (Replaces: W10142233) |
|
$ 8.04 | |||||
| 14 | W10219814 | Bracket, Door Stop |
|
- | |||||
| 15 | W10127772 | End Cap |
|
$ 49.75 |
