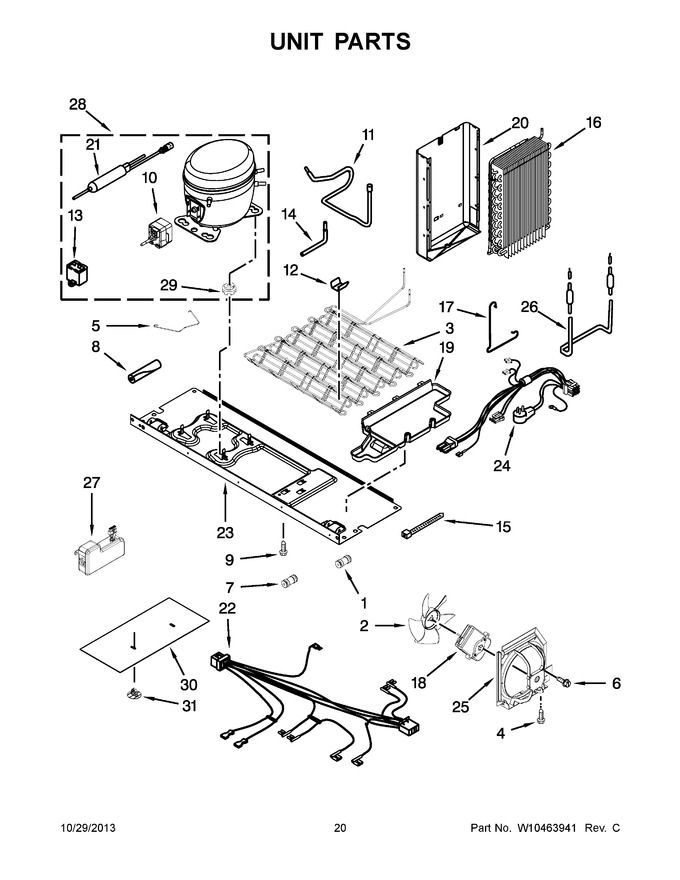

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 36.99 | ||||
| 2 | W10156818 | Blade, Fan (Replaces: 12825802) |
|
Immediately | $ 62.80 | ||||
| 3 | W11708426 | Condenser Assembly (Replaces: W10240365) |
|
$ 271.19 | |||||
| 4 | W10142255 | Screw |
|
- | |||||
| 5 | W10204187 | Strap, Bale |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 11.61 | ||||
| 7 | WPW10277958 | Connector, Water (Replaces: W10277958) |
|
Immediately | $ 69.57 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 9 | W11544659 | Screw (Replaces: W10142294) |
|
$ 14.35 | |||||
| 10 | WPW10197428 | Start- Device Combination (start Relay And Overload) (Replaces: W10197428) |
|
Immediately | $ 89.21 | ||||
| 11 | W11311688 | Tube Suction (Replaces: W10219381) |
|
$ 88.67 | |||||
| 12 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 19.38 | |||||
| 13 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 14 | 2325479 | Tube, Process |
|
- | |||||
| 15 | WP2205813 | Tie, Wire (Replaces: 2205813) |
|
$ 8.11 | |||||
| 16 | WPW10239732 | Evaporator, Fc (Replaces: W10239732) |
|
Immediately | $ 352.65 | ||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 124.18 | ||||
| 19 | WPW10251469 | Tray, Evaporator (Replaces: W10251469) |
|
$ 178.00 | |||||
| 20 | W10260424 | Heat Shield (Replaces: W10223361) |
|
$ 105.36 | |||||
| 21 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 22 | W11676780 | Wire Assembly, Unit (Replaces: W10209479) |
|
$ 77.71 | |||||
| 23 | W10277704 | Basepan |
|
$ 169.00 | |||||
| 24 | WPW10261232 | Power Cord (Replaces: W10261232) |
|
$ 66.90 | |||||
| 25 | WPW10251467 | Baffle, Air (Replaces: W10251467) |
|
$ 84.80 | |||||
| 26 | W10837692 | Heater, Defrost (Replaces: W10239728) |
|
$ 161.08 | |||||
| 27 | W11038857 | Led Power Supply (Replaces: W10356137) |
|
$ 363.91 | |||||
| 28 | W10160407 | Compressor (Replaces: W10200250) |
|
$ 629.92 | |||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 30 | W10284726 | Unit Cover, Bottom |
|
$ 115.91 | |||||
| 31 | W10296661 | Clip, Bottom Cover |
|
$ 17.78 | |||||
| NI | N/P | Refrigerant Charge (5.0 Oz. (r-134)) |
|
- | |||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 18.65 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access Ÿ``) |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | WP978025 | Valve, Access (Œ``) (Replaces: 978025) |
|
Immediately | $ 110.51 |
