SELECT A DIAGRAM

01 - Cabinet Liner And Door Parts


02 - Evaporator, Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10340993		Box, Control		Appelez-nous	-
2	WP2310139		Transformer   (Replaces: 2310139)				$ 290.03
3	WPW10282116		Assembly, Switch (also Order No.4)   (Replaces: W10282116)				$ 166.11
4	W10282111		Overlay		Appelez-nous	-
5	WPW10226156		Control Board   (Replaces: W10226156)			Immediately	$ 356.72
6	WP2149705		Switch, Plunger Grid/ Light   (Replaces: 2149705)			Immediately	$ 41.09
7	745362		Bulb		Appelez-nous	-
8	WPW10503764		Thermostat, Bin   (Replaces: 2313633)				$ 112.71
9	2185825		Clamp		Appelez-nous	-
10	WP3400884		Screw   (Replaces: 3400884)				$ 7.29
11	WP489443		Screw   (Replaces: 3400850)			Immediately	$ 7.50
12	WP2313635		Thermister, Evap.   (Replaces: 2313635)				$ 89.96
13	2187585		Wire Assy. Active Overlay Jumper				$ 55.36

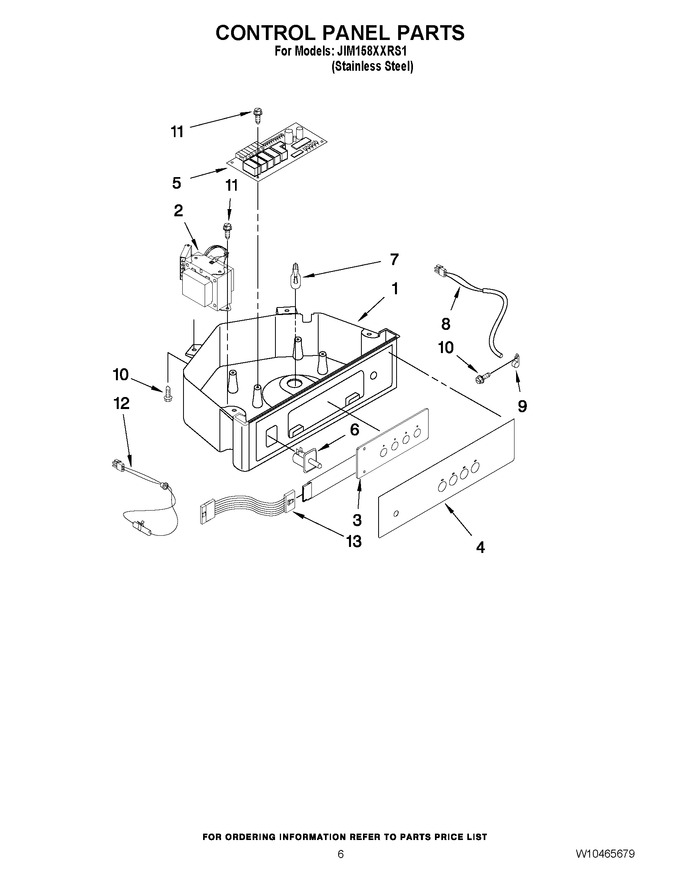

    View Diagram in Separate Window       Print Part List
