SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

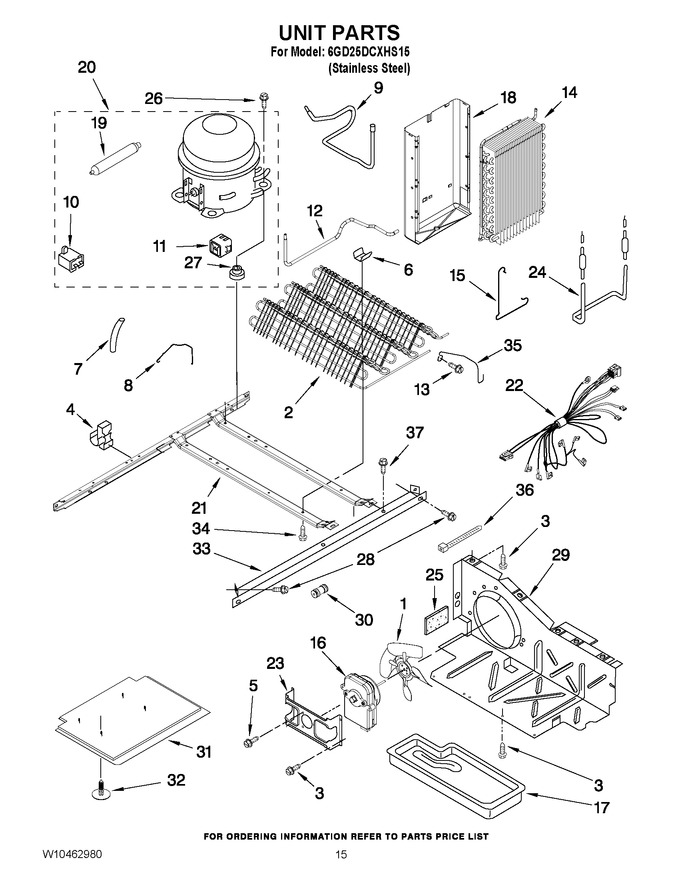

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 22.67
2	2324712		Condenser Assembly   (Replaces: W10121484)				$ 291.11
3	WP489464		Screw 8-18 X 1/2   (Replaces: W10001250)			Immediately	$ 7.54
4	2208280		Clip, Wire		Appelez-nous	-
5	WP8533993		Screw 7-18 X 1/2   (Replaces: 8533993)				$ 10.09
6	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 17.44
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
8	2302129		Bale Strap		Appelez-nous	-
9	2205765		Tube Suction				$ 36.04
10	2321245		Capacitor		Appelez-nous	-
11	2312003		Start-device, Combination (start Relay And Overload)		Appelez-nous	-
12	W10325116		Tube, Process		Appelez-nous	-
13	WP489478		Screw 8-18 X 1/2   (Replaces: W10001260)				$ 7.36
14	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 343.34
15	2161324		Clamp		Appelez-nous	-
16	WP2321271		Fan, Motor   (Replaces: 2321271)				$ 292.92
17	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
18	W10194475		Heat Shield		Appelez-nous	-
19	WPW10143759		Drier   (Replaces: W10423407)			Immediately	$ 27.70
20	WP8201733		Compressor (includes Items 7, 10, 11, 19 & 27) (also Order 876765 Tube Kit)   (Replaces: W10120454)				$ 523.07
21	2304904		Unit Mounting Frame		Appelez-nous	-
22	W10123598		Unit, Harness		Appelez-nous	-
23	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 11.64
24	WPW10123653		Heater, Defrost   (Replaces: W10123653)				$ 148.04
25	2217070		Foam Pad				$ 19.87
26	876811		Screw 1/4-28 X .90   (Replaces: 489373)				$ 7.01
27	876811		Grommet   (Replaces: 1100826)				$ 7.01
28	489340		Screw 5/16 X .630		Appelez-nous	-
29	W10896764		Air Baffle   (Replaces: W10411518)				$ 91.08
30	WPW10334458		Connector, Water Tube   (Replaces: W10271540)				$ 20.40
31	2304899		Unit Cover, Bottom		Appelez-nous	-
32	489396		Clip				$ 10.13
33	2305374		Unit Mounting Rail				$ 76.20
34	W11544659		Screw 8-18 X 1-1/4   (Replaces: 8281232)				$ 12.92
35	2186495		Guard, Fan		Appelez-nous	-
36	WPW10339879		Strap   (Replaces: 2172840)				$ 7.47
37	WP489427		Screw 1/4-20 X 5/8   (Replaces: W10146358)				$ 7.06
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 123.53
NI	876764		Valve, Access (3/16``)			Immediately	$ 86.33
NI	N/P		Refrigerant Charge 5.0 Oz. (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access (5/16``)			Immediately	$ 121.04
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
