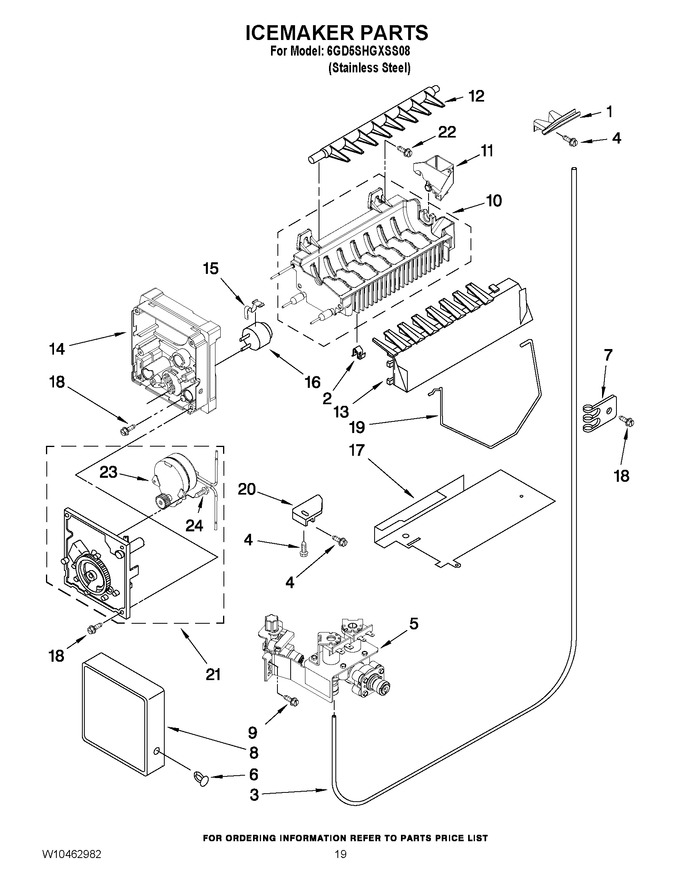

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 31.79 | |||||
| 2 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 3 | W10823511 | Tube, Water (Replaces: 2223137) |
|
Immediately | $ 29.17 | ||||
| 4 | WP489478 | Screw 8-18 X 1/2 (Replaces: W10001260) |
|
$ 7.36 | |||||
| 5 | WPW10158157 | Filter Valve Asm (Replaces: W10158157) |
|
$ 237.54 | |||||
| 6 | 489115 | Clip |
|
$ 5.51 | |||||
| 7 | WP488366 | Tube Clamp (Replaces: 489385) |
|
$ 10.73 | |||||
| 8 | W10289697 | Cover |
|
- | |||||
| 9 | WPW10141625 | Screw 8-32 X 1/2 (Replaces: W10141625) |
|
$ 20.00 | |||||
| 10 | W10122523 | Mold & Heater Assembly (also Order 542638) |
|
- | |||||
| 11 | W10122561 | Cup, Water Fill |
|
$ 26.24 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 13 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 89.48 | |||||
| 14 | WP2195914 | Support (Replaces: 2195914) |
|
$ 98.82 | |||||
| 15 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 16 | WP2321258 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 2321258) |
|
$ 93.54 | |||||
| 17 | 2256178 | Heat Shield (Replaces: 2182414) |
|
- | |||||
| 18 | WPW10141645 | Screw 8-15 X 1/2 (Replaces: W10141645) |
|
$ 7.25 | |||||
| 19 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 56.89 | ||||
| 20 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 30.40 | ||||
| 21 | W10239565 | Module Assembly Includes 23 & 24) |
|
- | |||||
| 22 | W10141596 | Screw 8-15 X .813 |
|
$ 8.30 | |||||
| 23 | W10122571 | Motor |
|
- | |||||
| 24 | W10001240 | Screw 8-18 X 3/4 |
|
$ 8.30 | |||||
| 100 | W10190963 | Complete Icemaker Assembly |
|
- |
