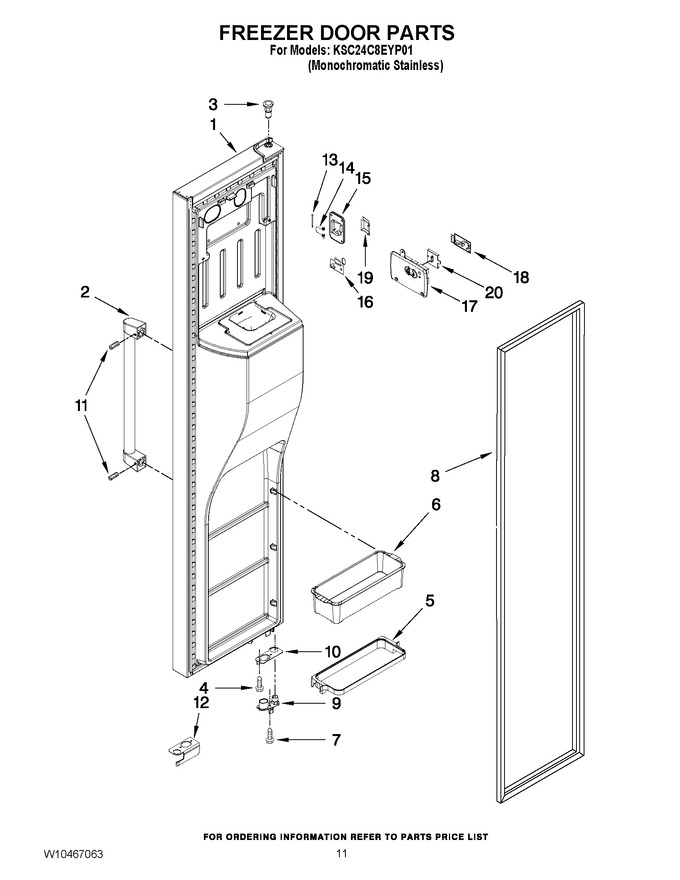

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10397062 | Freezer Door (includes Item 8 And Dispenser Front Parts) (mono Stainless) |
|
- | |||||
| 2 | W10319123 | Handle |
|
$ 65.29 | |||||
| 3 | WP2182181 | Thimble-top (Replaces: 2200087) |
|
$ 7.34 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 5 | WPW10494336 | Frame, Door Bin (Replaces: W10439018) |
|
$ 219.25 | |||||
| 6 | WPW10434529 | Door Bin (Replaces: W10434529) |
|
$ 70.00 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 8 | W10355591 | Door Gasket, Magnetic (Replaces: W10249919) |
|
Immediately | $ 294.71 | ||||
| 9 | WPW10257206 | Door Closer, Upper Cam (Replaces: W10257206) |
|
Immediately | $ 11.86 | ||||
| 10 | W11293380 | Bracket, Door Stop (chrome) (Replaces: W10247907) |
|
$ 62.29 | |||||
| 11 | W10320946 | Set Screw |
|
- | |||||
| 12 | WPW10632062 | Cover, Door Stop (Replaces: W10257223) |
|
$ 6.80 | |||||
| 13 | WP2198634 | Pin (Replaces: 2198634) |
|
$ 16.79 | |||||
| 14 | WP2198635 | Spring (Replaces: 2198635) |
|
$ 82.29 | |||||
| 15 | W10258502 | Cover, Emitter |
|
$ 80.77 | |||||
| 16 | W10870822 | P.c. Board, Emitter (Replaces: W10180607) |
|
Immediately | $ 205.25 | ||||
| 17 | W11763407 | Cover, Emitter (Replaces: W10258510) |
|
$ 40.05 | |||||
| 18 | W11813704 | P.c. Board, Receiver (Replaces: W10296530) |
|
Immediately | $ 296.07 | ||||
| 19 | WPW10258520 | Flipper (Replaces: W10258520) |
|
$ 71.69 | |||||
| 20 | W10258540 | Slide, Ice Make Shut Off |
|
$ 10.04 |
