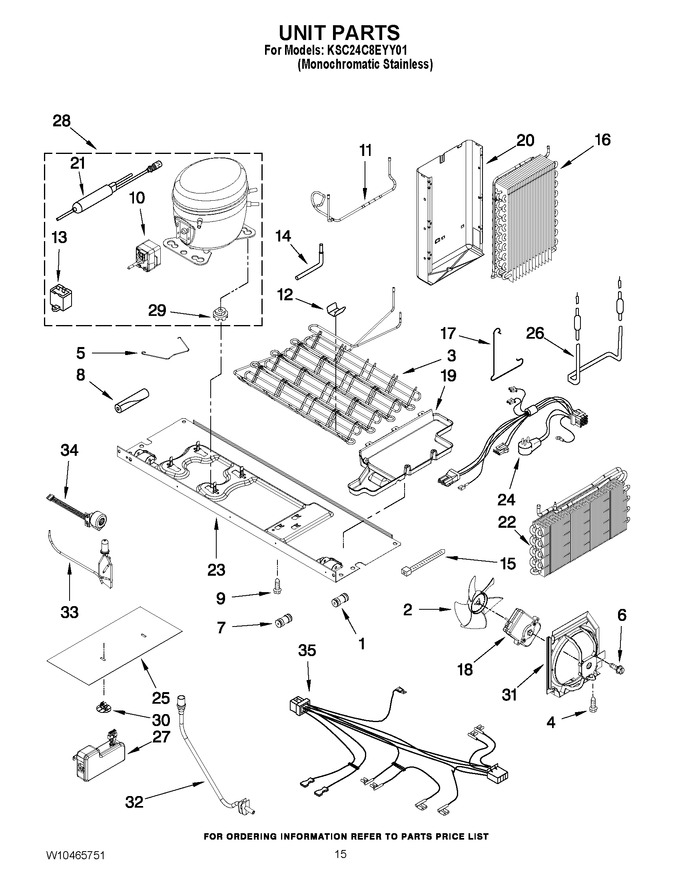

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10277958 | Connector (Replaces: W10277958) |
|
Immediately | $ 62.61 | ||||
| 2 | W10156818 | Fan, Blade (Replaces: 12825802) |
|
Immediately | $ 56.52 | ||||
| 3 | W11708426 | Condenser Assembly (Replaces: W10240365) |
|
$ 244.07 | |||||
| 4 | WP489399 | Screw (Replaces: W10142231) |
|
$ 6.57 | |||||
| 5 | W10204187 | Clip |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: W10171469) |
|
Immediately | $ 10.45 | ||||
| 7 | WPW10277958 | Connector, 1/4 (Replaces: W10277958) |
|
Immediately | $ 62.61 | ||||
| 8 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 19.19 | ||||
| 9 | W11544659 | Screw (Replaces: W10142294) |
|
$ 12.92 | |||||
| 10 | WPW10197428 | Start Device Combination Relay & Overload (production) (Replaces: W10197428) |
|
Immediately | $ 80.29 | ||||
| 10 | WPW10197426 | Start Device Combination Relay & Overload (service) (Replaces: W10136414) |
|
$ 145.85 | |||||
| 11 | WPW10223328 | Tube Suction, With Check Valve (Replaces: W10223328) |
|
$ 83.57 | |||||
| 12 | W10683556 | Clip, Condenser(2) (Replaces: W10248621) |
|
$ 17.44 | |||||
| 13 | WPW10662129 | Capacitor (service) (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 14 | 2325479 | Process Tube |
|
- | |||||
| 15 | WP2205813 | Strap (Replaces: 2205813) |
|
$ 7.30 | |||||
| 16 | WPW10239732 | Evaporator, Fc (Replaces: W10239732) |
|
Immediately | $ 317.39 | ||||
| 17 | 2161324 | Clamp |
|
- | |||||
| 18 | WP2188874 | Fan, Motor (Replaces: 2188874) |
|
Immediately | $ 111.76 | ||||
| 19 | WPW10251469 | Tray, Evaporator (Replaces: W10251469) |
|
$ 160.20 | |||||
| 20 | W10376319 | Heat Shield (Replaces: W10343824) |
|
$ 104.38 | |||||
| 21 | WPW10143759 | Drier (production) (Replaces: W10286069) |
|
Immediately | $ 27.70 | ||||
| 21 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 27.70 | ||||
| 22 | WPW10643261 | Evaporator, Dual - Rc (Replaces: W10156654) |
|
Immediately | $ 309.10 | ||||
| 23 | W10277704 | Support Plate, Compressor |
|
$ 169.00 | |||||
| 24 | WPW10261232 | Power Cord (Replaces: W10261232) |
|
$ 60.21 | |||||
| 25 | W10284726 | Unit Cover, Bottom |
|
$ 115.91 | |||||
| 26 | W10837692 | Heater, Defrost (Replaces: W10239728) |
|
$ 144.97 | |||||
| 27 | W11038857 | Led Power Supply (Replaces: W10356137) |
|
$ 327.52 | |||||
| 28 | W10309988 | Compressor (includes Items 10, 13, 21, & 29) (also Order 876765 Tube Kit) (Replaces: W10253005) |
|
Immediately | $ 528.56 | ||||
| 29 | 876811 | Grommet (4) (service) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 29 | WPW10169124 | Grommet (4) (production) (Replaces: 10835903) |
|
$ 6.80 | |||||
| 30 | W10296661 | Clip |
|
$ 16.00 | |||||
| 31 | WPW10251467 | Air Baffle (Replaces: W10251467) |
|
$ 76.32 | |||||
| 32 | W11409190 | Tube, Drain (Replaces: W10223368) |
|
Immediately | $ 58.81 | ||||
| 33 | W11590197 | Assy Valve Body (Replaces: W10331270) |
|
Immediately | $ 102.70 | ||||
| 34 | WPW10364560 | Valve Coil, 3-way (Replaces: W10364560) |
|
$ 203.29 | |||||
| 35 | W11676780 | Harness, Wiring Water Valve/diode (Replaces: W10209479) |
|
$ 69.94 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 86.33 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 |
