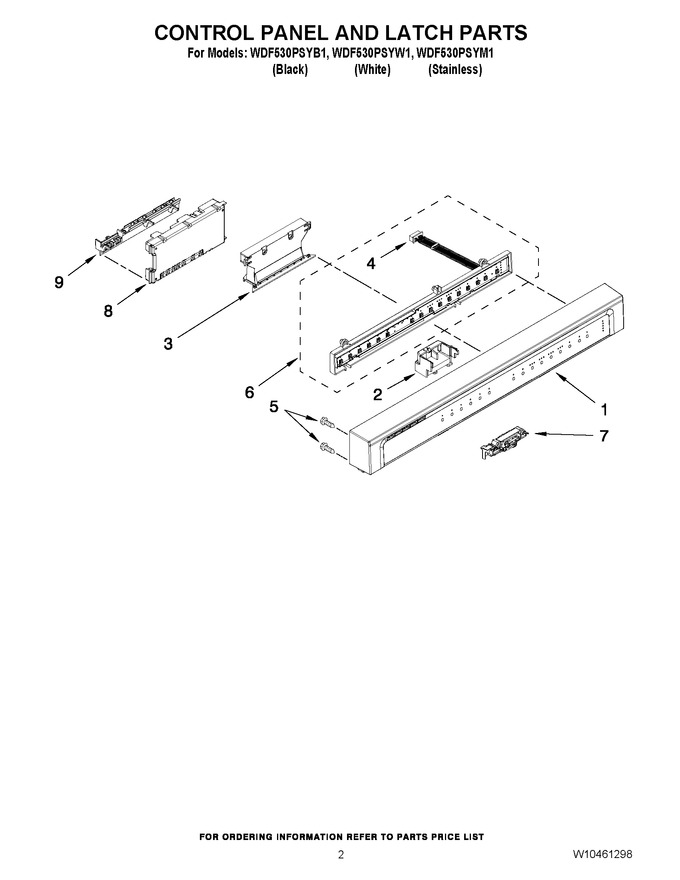

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10350425 | Console Asm. (includes 5, 6 & 10) (black) (Replaces: W10350421) |
|
$ 259.13 | |||||
| 1 | W10350426 | Console Asm. (includes 5, 6 & 10) (white) (Replaces: W10350422) |
|
$ 91.22 | |||||
| 1 | W10350428 | Console Asm. (includes 5, 6 & 10) (stainless) (Replaces: W10350424) |
|
$ 333.16 | |||||
| 2 | W10783730 | Box, Connector (Replaces: W10401190) |
|
$ 28.27 | |||||
| 3 | WPW10321839 | Handle, Pocket (Replaces: W10321839) |
|
Immediately | $ 134.12 | ||||
| 4 | W10327246 | Wire, Jumper |
|
$ 60.31 | |||||
| 5 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 7.22 | ||||
| 6 | WPW10629166 | Ui Housing Assy (Replaces: W10440700) |
|
Immediately | $ 284.09 | ||||
| 7 | W10619006 | Latch, Assy (Replaces: W10370003) |
|
Immediately | $ 35.18 | ||||
| 8 | W10473200 | Control, Electronic (Replaces: W10352586) |
|
$ 255.39 | |||||
| 9 | WPW10194937 | Brace, Connector (Replaces: W10194937) |
|
$ 27.50 |
