SELECT A DIAGRAM

01 - Top And Console Parts

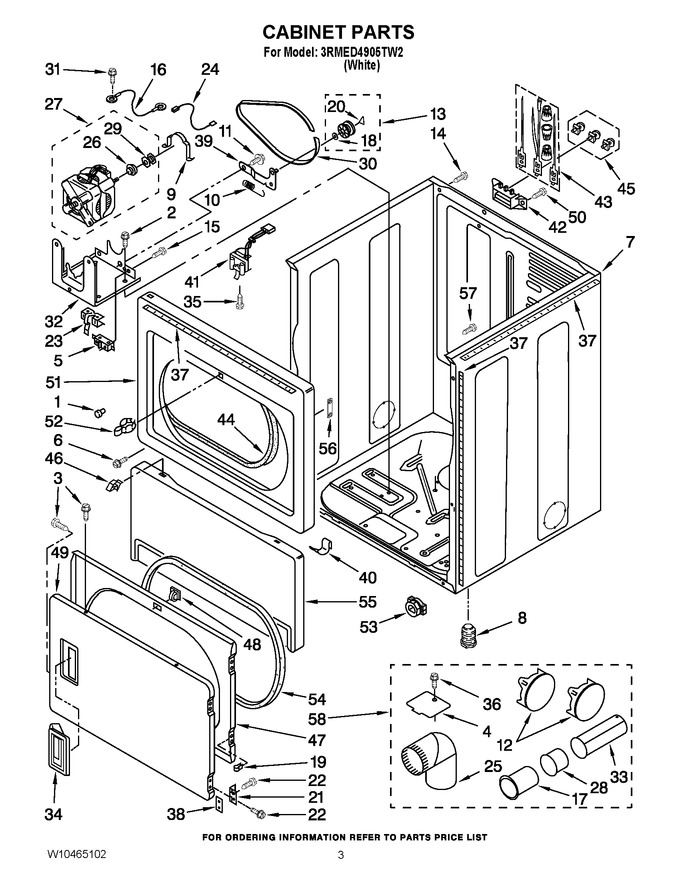

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	693152		Bumper				$ 10.36
2	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
3	WP488627		Screw   (Replaces: 342055)				$ 7.30
4	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 8.47
5	WP8318457		Switch, Broken Belt   (Replaces: 8318457)				$ 39.77
6	W10891954		Screw, 8-18 X 3/8   (Replaces: 8281212)		Appelez-nous	-
7	W11417441		Cabinet   (Replaces: 8310656)				$ 396.15
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 23.22
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 7.76
12	WPW10404617		Plug, Multivent   (Replaces: W10404617)				$ 68.02
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 29.26
14	WP90767		Screw Ground   (Replaces: 8533971)			Immediately	$ 7.43
15	3400934		Screw		Appelez-nous	-
16	340025		Wire, Ground		Appelez-nous	-
17	WP8563747		Exhaust Pipe   (Replaces: 8563747)				$ 86.36
18	WPW10121334		Washer, Thrust   (Replaces: W10121334)			Immediately	$ 6.80
19	3389249		Nut, Inner Door		Appelez-nous	-
20	WPW10512946		Tri Ring   (Replaces: 690997)			Immediately	$ 8.71
21	WPW10279703		Hinge & Pin Assembly   (Replaces: W10279703)				$ 68.25
22	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.30
23	W10854043		Lever, Snap Switch   (Replaces: W10083220)				$ 27.41
24	3394081		Wire, Belt Switch				$ 37.57
25	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 25.34
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
27	W10416573		Motor, Assembly 50 Hz.   (Replaces: W10289661)				$ 225.72
28	WPW10331278		Exhaust Pipe (short)   (Replaces: W10331278)				$ 74.61
29	3402548		Pulley 50 Hz.		Appelez-nous	-
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 29.53
31	3400097		Screw, 10-24 X 3/8		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 126.24
33	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 83.92
34	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 71.59
35	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.71
36	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 6.80
37	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 35.74
38	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 10.50
39	W10837240		Idler Bracket   (Replaces: W10118756)			Immediately	$ 32.20
40	WPW10291934		Clip   (Replaces: W10291934)				$ 7.33
41	WPW10237959		Door Switch Assembly   (Replaces: W10237959)			Immediately	$ 56.37
42	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 21.75
43	279318		Terminal, Brass & Tinned Includes Illus. 45			Immediately	$ 95.44
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	279393		Terminal Block Screw Kit ( For Terminal Block)			Immediately	$ 50.09
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
47	280083		Door, Rear   (Replaces: W10323061)				$ 271.23
48	279570		Catch, Door Assembly   (Replaces: 3392538)			Immediately	$ 8.00
49	W11663440		Door, Front   (Replaces: W10322546)				$ 245.11
50	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
51	W10193554		Upper Front Panel		Appelez-nous	-
52	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
53	W11704629		Clip, Strain Relief   (Replaces: 8316644)		Appelez-nous	-
54	WP3390735		Seal, Door   (Replaces: 3390735)				$ 123.42
55	WP3406797		Toe, Panel (includes Illus. 1)   (Replaces: 697215)				$ 225.23
56	W10191265		Plug-hinge Screw				$ 41.84
57	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
NI	49621		Foot - Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
NI	W10470674		Midnight Grey   (Replaces: W10186596)			Immediately	$ 76.75

    View Diagram in Separate Window       Print Part List
