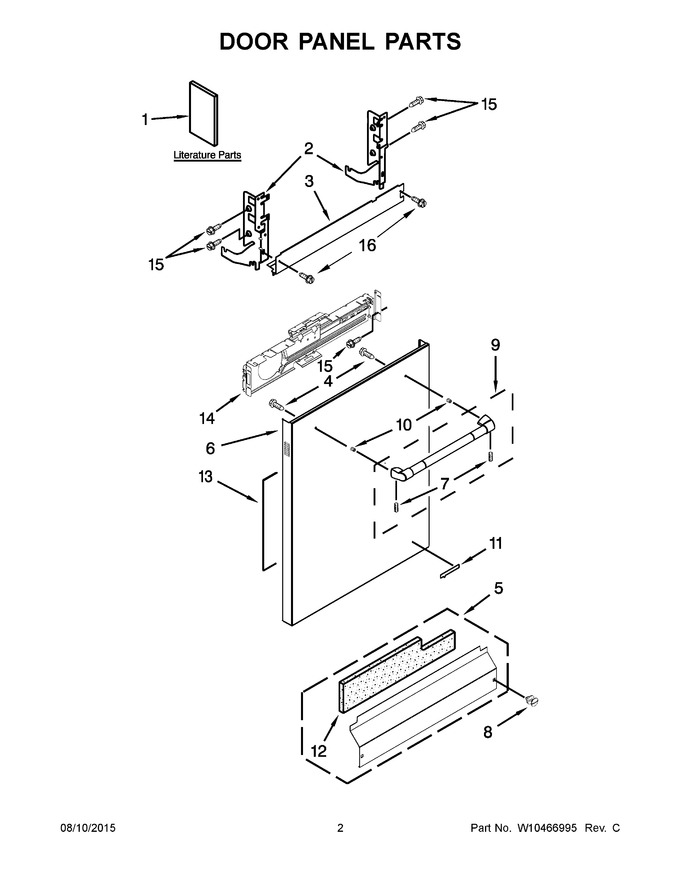

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10418362 | Installation, Instructions |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 128.15 | ||||
| 3 | W10850371 | Barrier, Vapor Assembly (Replaces: W10321449) |
|
Immediately | $ 29.59 | ||||
| 4 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 6.80 | ||||
| 5 | W10827631 | Access Panel (black) (Replaces: W10369024) |
|
Immediately | $ 176.08 | ||||
| 6 | WPW10409492 | Panel, Front (includes Items 4, 10 & 11) (stainless) (Replaces: W10409492) |
|
$ 339.41 | |||||
| 7 | WP8534008 | Screw, Set (Replaces: 8534008) |
|
$ 8.43 | |||||
| 8 | WPW10503548 | Fastener (black) (Replaces: W10331789) |
|
Immediately | $ 27.35 | ||||
| 9 | WPW10409518 | Handle Assembly (stainless) (Replaces: W10409518) |
|
$ 250.88 | |||||
| 10 | WP8564951 | Stud, Mounting (Replaces: 8564951) |
|
Immediately | $ 17.40 | ||||
| 11 | W11636815 | Nameplate (stainless) (Replaces: W10114211) |
|
$ 40.82 | |||||
| 12 | W10831329 | Insulation, Toe Panel (Replaces: W10073540) |
|
Immediately | $ 38.97 | ||||
| 13 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 58.73 | ||||
| 14 | W11116870 | Bracket, Control Panel (Replaces: W10194911) |
|
$ 80.96 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
Immediately | $ 7.43 | ||||
| 16 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 1A | W10460138 | Energy Guide |
|
- | |||||
| 1B | W10418360 | Use & Care Guide, English/french |
|
- | |||||
| 1C | W10321874 | Tech Sheet |
|
- | |||||
| 1D | W10321875 | Tech Sheet (french) |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 128.02 |
