01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

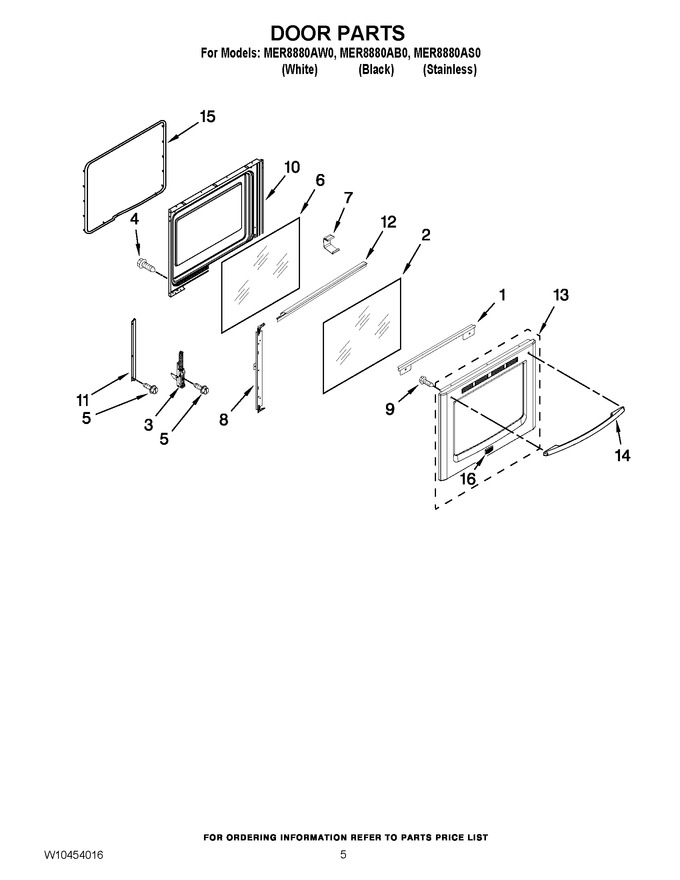

04 - Door Parts
05 - Drawer And Rack Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10330075 | Trim, Vent (white) |
|
$ 71.78 | |||||
| 1 | W10339814 | Trim, Vent (black/ss) |
|
$ 139.33 | |||||
| 2 | W10316819 | Glass, Outer Door |
|
- | |||||
| 3 | WPW10440013 | Hinge, Active Door (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 267.26 | |||||
| 7 | W10137382 | Clip, Glass |
|
Immediately | $ 43.58 | ||||
| 8 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 120.38 | |||||
| 9 | WPW10241367 | Screw (Replaces: W10241367) |
|
$ 6.27 | |||||
| 10 | WPW10297318 | Lining, Door (Replaces: W10297318) |
|
Immediately | $ 298.36 | ||||
| 11 | W10294852 | Bracket, Glass |
|
$ 144.19 | |||||
| 12 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 213.34 | ||||
| 13 | WPW10655838 | Skin, Door (stainless Steel) (Replaces: W10325668) |
|
Immediately | $ 336.02 | ||||
| 13 | W10325666 | Skin, Door (black) |
|
- | |||||
| 13 | W10325665 | Skin, Door (white) |
|
- | |||||
| 14 | WPW10161708 | Handle, Door (stainless Steel) (Replaces: W10161708) |
|
$ 335.71 | |||||
| 14 | WPW10171747 | Handle, Door (white) (Replaces: W10171747) |
|
$ 266.50 | |||||
| 14 | WPW10171748 | Handle, Door (black) (Replaces: W10171748) |
|
$ 261.54 | |||||
| 15 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 16 | W10429490 | Badge |
|
- |
