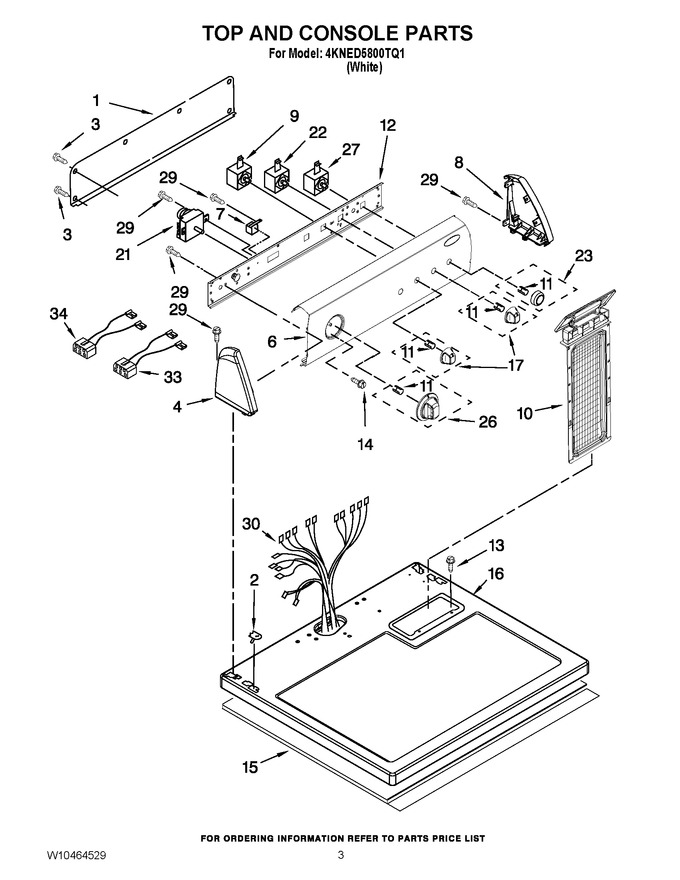

01 - Cabinet Parts


02 - Top And Console Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
2	WP357213		Nut-push-in (2)   (Replaces: 357213)				$ 6.98
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
4	8271365		Cap, End (l.h.)		Appelez-nous	-
6	W10086670		Panel, Control		Appelez-nous	-
7	3952439		Buzzer, Mini		Appelez-nous	-
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP3399639		Switch, Temperature   (Replaces: 3399639)			Immediately	$ 118.04
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 49.17
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	8271418		Bracket, Control				$ 57.15
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 12.49
15	W10123956		Dampening Panel		Appelez-nous	-
16	8557930		Top		Appelez-nous	-
17	WPW10110047		Knob, Control (2) (pts Relay)   (Replaces: W10110047)				$ 49.97
21	WP3979617		Timer, 60 Hz.   (Replaces: 3979617)			Immediately	$ 347.21
22	3405152		Switch, End Of Cycle				$ 117.96
23	WPW10110049		Knob, Push-to-start   (Replaces: W10110049)				$ 47.57
26	W10110048		Timer Knob Assembly		Appelez-nous	-
27	W10119074		Switch, Push-to-start		Appelez-nous	-
29	WP388326		Screw, Mounting (8-18 X 5/16)   (Replaces: 388326)				$ 8.36
30	WPW10386312		Harness, Wiring   (Replaces: W10386312)				$ 230.27
32	3347243		Connector 6-circuit		Appelez-nous	-
33	3401695		Jumper, Buzzer (on/off)		Appelez-nous	-
34	8539893		Jumper, Three Wire Temperature   (Replaces: 3396029)				$ 17.80
