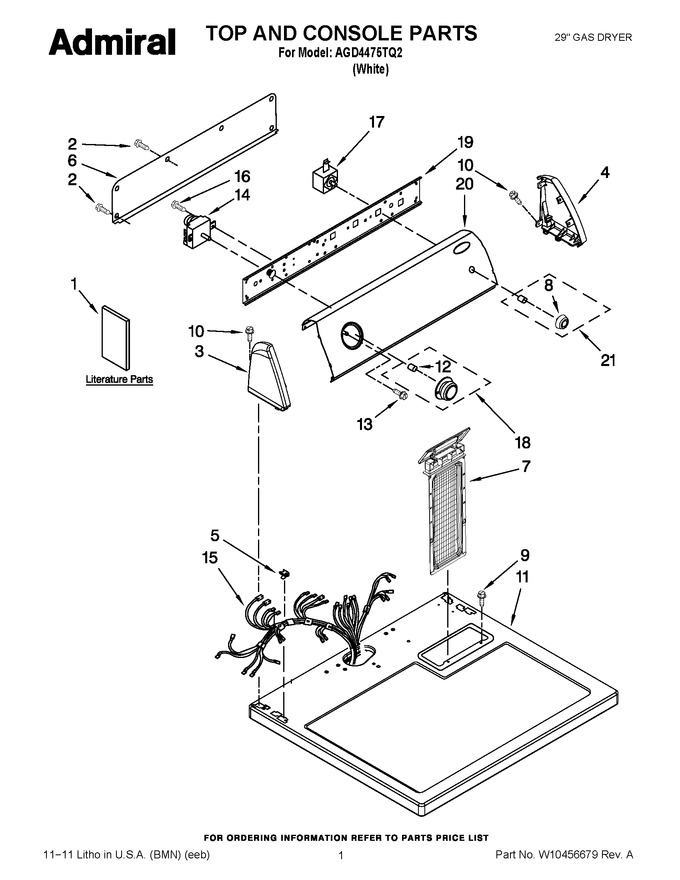

01 - Top And Console Parts


02 - Cabinet Parts


03 - W10336852 Burner Assembly


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10287575		Guide, Use & Care		Appelez-nous	-
1	W10115228		Instructions, Installation		Appelez-nous	-
1	W10185979		Wiring Diagram		Appelez-nous	-
2	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 6.80
3	8271365		Cap, End (l.h.) (motor)		Appelez-nous	-
4	8271359		Cap, End (r.h.)		Appelez-nous	-
5	WP357213		Nut-push-in (2)   (Replaces: 357213)				$ 6.98
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
7	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 49.17
8	WP8536939		Spring-clip Knob   (Replaces: 8536939)			Immediately	$ 7.38
9	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
10	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
11	8557930		Top		Appelez-nous	-
12	WP688805		Spring, Clip Knob   (Replaces: 688805)			Immediately	$ 7.38
13	3400859		Screw, 8-18 X 7/32   (Replaces: 8533951)				$ 12.49
14	WPW10185971		Timer   (Replaces: W10185971)				$ 286.57
15	W10186074		Harness, Wiring 2-position (gas Valve)		Appelez-nous	-
16	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
17	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99
18	WP8557455		Timer Knob & Dial   (Replaces: 8538953)				$ 53.65
19	8271418		Bracket, Control				$ 57.15
20	W10141666		Panel, Control		Appelez-nous	-
21	8538959		Knob, Push-to-start				$ 25.38
