Diagram for 02 - Cooktop Parts
02 - Cooktop Parts

Diagram for 03 - Control Panel Parts
03 - Control Panel Parts

Diagram for 04 - Blower Assembly Parts
04 - Blower Assembly Parts

Diagram for 05 - Chassis Parts
05 - Chassis Parts

Diagram for 06 - Internal Oven Parts
06 - Internal Oven Parts

Diagram for 07 - Drawer Parts
07 - Drawer Parts

Diagram for 08 - Door Parts
08 - Door Parts

Diagram for 09 - Optional Parts
09 - Optional Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7922P057-60 Glass, Drawer (black) Appelez-nous -
2 WP2416F086-70 Panel, Drawer (black)   (Replaces: 2416F086-70) Special Order $ 215.54

3 3806F011-80 Hanger, Access Panel Special Order $ 62.29

4 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 12.81

5 W10234012 Overlay (oiled Bronze) Appelez-nous -
1A 7922P058-60 Glass, Drawer (white) Special Order $ 86.39

2A 2416F086-71 Panel, Drawer (white) Special Order $ 126.90


    View Diagram in Separate Window     Print Icon   Print Part List

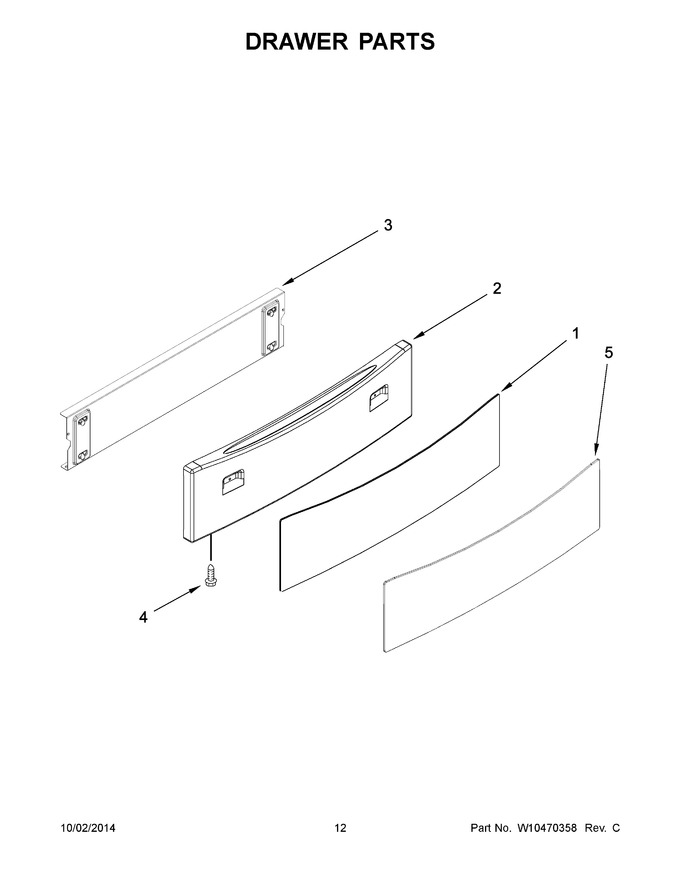

Diagram for JES9800CAF01
