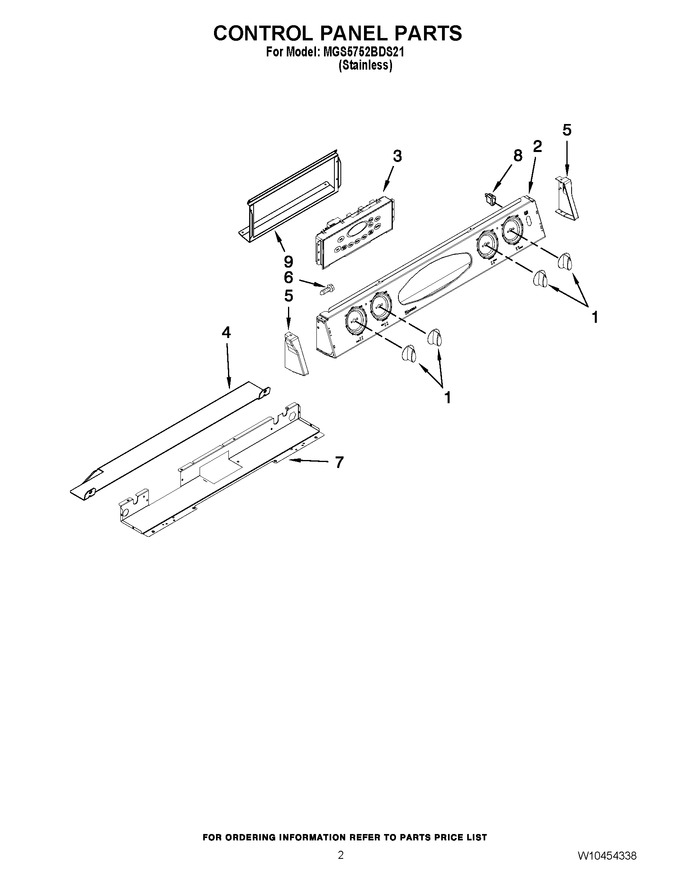

02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010974 | Knob (Replaces: 7733P458-60) |
|
$ 70.64 | |||||
| 2 | W10312502 | Panel, Control |
|
- | |||||
| 3 | WP5701M887-60 | Control W/overlay (Replaces: 5701M887-60) |
|
Immediately | $ 574.07 | ||||
| 4 | 3604F421-51 | Shield, Control |
|
$ 32.71 | |||||
| 5 | 7726P400-60 | Cap, End (left) |
|
$ 32.99 | |||||
| 5 | 7726P401-60 | Cap, End (right) |
|
$ 23.44 | |||||
| 6 | WP98008545 | Screw (end Cap) (Replaces: 7101P633-60) |
|
$ 16.74 | |||||
| 7 | 3807F729-51 | Support, Cntrl Pnl |
|
- | |||||
| 8 | 7403P985-60 | Switch, Rocker |
|
$ 86.31 | |||||
| 9 | 3801F895-51 | Bracket, Control Mounting |
|
- |
