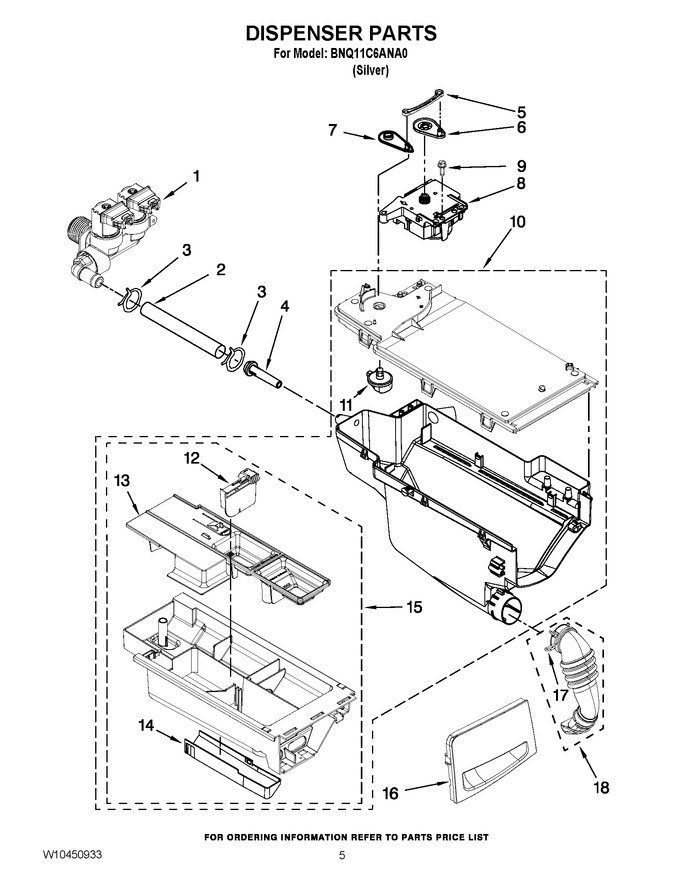

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10289387 | Valve, Inlet (Replaces: W10289387) |
|
Immediately | $ 149.27 | ||||
| 2 | W10538835 | Hose, Inlet Valve To Dispenser (Replaces: W10239952) |
|
$ 27.46 | |||||
| 3 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 7.94 | ||||
| 4 | WP8183181 | Nozzle, Inlet (Replaces: 8183181) |
|
$ 85.34 | |||||
| 5 | WP8183183 | Lever, Connection (Replaces: 8183183) |
|
$ 85.27 | |||||
| 6 | WP8183184 | Cam, Actuator (Replaces: W10003190) |
|
$ 85.27 | |||||
| 7 | W10183517 | Lever, Water Distribution |
|
$ 9.94 | |||||
| 8 | WPW10352973 | Actuator (Replaces: W10163975) |
|
Immediately | $ 157.59 | ||||
| 9 | WP8540282 | Screw, M4-1.8 X 16 (Replaces: 8540282) |
|
Immediately | $ 10.93 | ||||
| 10 | W10433522 | Housing, Dispenser Assembly (includes Item 7) |
|
- | |||||
| 11 | WP8181712 | Nozzle, Distribution (Replaces: W10003110) |
|
$ 84.21 | |||||
| 12 | W10433529 | Separator, With Selection Slider |
|
- | |||||
| 13 | W10433526 | Siphon, Bleach/softener |
|
- | |||||
| 14 | W10003140 | Cover, Detergent Drawer |
|
$ 80.92 | |||||
| 15 | W10433523 | Drawer, Detergent (complete) |
|
- | |||||
| 16 | W10411193 | Handle, Drawer |
|
- | |||||
| 17 | W10239910 | Clamp, Hose |
|
Immediately | $ 58.77 | ||||
| 18 | WPW10239966 | Hose, Dispenser To Bellow (Replaces: W10239966) |
|
$ 78.39 |
