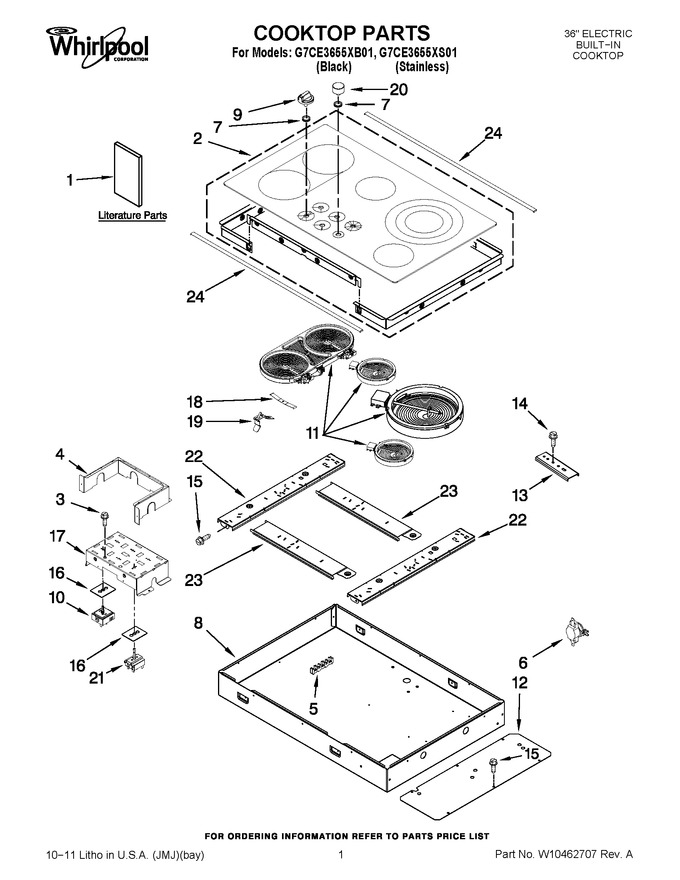

01 - Cooktop Parts
02 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10346695 | Installation Instructions |
|
- | |||||
| 1 | W10346696 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10435223 | Wiring Diagram |
|
- | |||||
| 2 | WPW10365145 | Cooktop (stainless) (Replaces: W10352560) |
|
$ 501.90 | |||||
| 2 | W10318988 | Cooktop (black) |
|
- | |||||
| 3 | WP486579 | Screw (Replaces: 311865) |
|
$ 7.10 | |||||
| 4 | W10311897 | Shield, Switch |
|
- | |||||
| 5 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 6 | WP7450P034-60 | Limit, Oven (Replaces: 7450P034-60) |
|
$ 205.61 | |||||
| 7 | W10372006 | Grommet, Infinite Switch (grey) |
|
- | |||||
| 7 | WPW10293874 | Grommet, Infinite Switch (black) (Replaces: W10293874) |
|
Immediately | $ 7.61 | ||||
| 8 | W10421512 | Box, Burner |
|
- | |||||
| 9 | WPW10316664 | Knob, Control (stainless) (Replaces: W10316664) |
|
Immediately | $ 24.05 | ||||
| 9 | WPW10316662 | Knob, Control (black) (Replaces: W10316662) |
|
Immediately | $ 20.03 | ||||
| 10 | W10861720 | Switch, Infinite (lr) (Replaces: W10312187) |
|
$ 135.07 | |||||
| 10 | W10337590 | Switch, Infinite (rr) |
|
$ 218.16 | |||||
| 10 | WPW10326246 | Switch, Infinite (rf) (Replaces: W10326246) |
|
$ 137.72 | |||||
| 10 | WPW10434447 | Switch, Infinite (lf) (Replaces: W10434447) |
|
$ 133.89 | |||||
| 10 | W11106342 | Switch, Infinite (warming (center)) (Replaces: W10312186) |
|
$ 128.48 | |||||
| 11 | W11171119 | Element, Surface (rf) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 11 | WPW10245539 | Element, Surface (warming (center)) (Replaces: W10245539) |
|
$ 137.33 | |||||
| 11 | WPW10248259 | Element, Surface (bridge) (Replaces: W10248259) |
|
Immediately | $ 336.74 | ||||
| 11 | WPW10297138 | Element, Surface (lr) (Replaces: W10297138) |
|
$ 334.94 | |||||
| 12 | W10312152 | Plate, Bottom |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 16 | 3183956 | Gasket, Switch |
|
$ 43.89 | |||||
| 17 | W11215839 | Plate, Switch (Replaces: W10291159) |
|
- | |||||
| 18 | 8286582 | Clip, Spring (for Bridge) |
|
- | |||||
| 19 | WPW10225448 | Spring, Push-in (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 20 | WPW10316815 | Knob, Accusimmer (black) (Replaces: W10316815) |
|
Immediately | $ 14.89 | ||||
| 20 | W11213837 | Knob, Accusimmer (stainless) (Replaces: W10316816) |
|
Immediately | $ 65.74 | ||||
| 21 | WP9762441 | Switch, Rotary (Replaces: 9762441) |
|
$ 139.46 | |||||
| 22 | W10311788 | Rail, Vertical |
|
- | |||||
| 23 | W10311793 | Rail, Horizontal |
|
- | |||||
| 24 | W10433736 | Trim, Front/rear Ss Mdl Only |
|
- |
