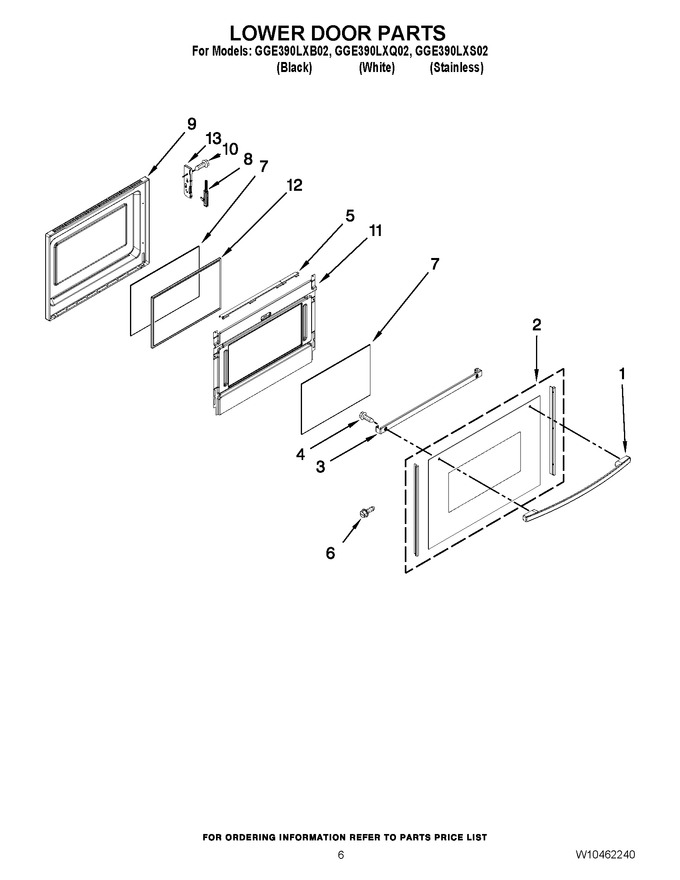

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Upper Door Parts
05 - Lower Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817434 | Handle, Door (white) (Replaces: W10323588) |
|
Immediately | $ 211.34 | ||||
| 1 | WPW10144883 | Handle, Door (stainless) (Replaces: W10144883) |
|
$ 227.39 | |||||
| 1 | WPW10323589 | Handle, Door (black) (Replaces: W10323589) |
|
Immediately | $ 252.10 | ||||
| 2 | W10354849 | Glass, Door (black) |
|
- | |||||
| 2 | W10326904 | Glass, Door (stainless (stainless Incl. Trim & Overlay)) |
|
- | |||||
| 2 | W10352521 | Glass, Door (white) |
|
- | |||||
| 3 | WPW10294695 | Bracket, Handle (Replaces: W10294695) |
|
$ 132.32 | |||||
| 4 | WPW10317886 | Screw, Handle (Replaces: W10317886) |
|
Immediately | $ 7.38 | ||||
| 5 | WPW10272594 | Frame, Glass (2) (Replaces: W10272594) |
|
Immediately | $ 177.65 | ||||
| 6 | WPW10292297 | Screw W/washer (Replaces: W10292297) |
|
Immediately | $ 6.80 | ||||
| 7 | WP9757706 | Glass, Inner (2) (Replaces: 9757706) |
|
Immediately | $ 158.18 | ||||
| 8 | WPW10335433 | Hinge, Door (left) (Replaces: W10335433) |
|
$ 94.49 | |||||
| 8 | WPW10335434 | Hinge, Door (right) (Replaces: W10335434) |
|
Immediately | $ 92.61 | ||||
| 9 | WPW10272698 | Lining, Door (Replaces: W10272698) |
|
$ 311.15 | |||||
| 10 | WP4449040 | Screw (receiver) (Replaces: 4449040) |
|
$ 6.78 | |||||
| 11 | W10340464 | Retainer, Insul. |
|
$ 260.82 | |||||
| 12 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 95.79 | |||||
| 13 | WPW10272329 | Receiver (left) (Replaces: W10272329) |
|
$ 73.00 | |||||
| 13 | WPW10272328 | Receiver (right) (Replaces: W10272328) |
|
$ 81.04 |
