01 - Cabinet, Door And Liner Parts

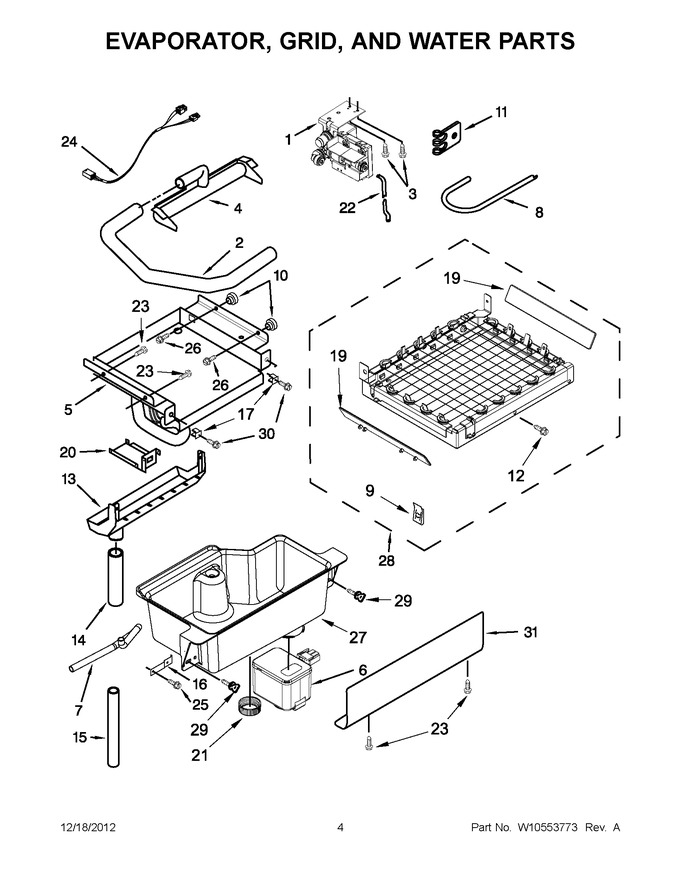

02 - Evaporator, Grid, And Water Parts
03 - Pump Parts
04 - Control Panel Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10340983 | Valve, Smart Electronic (Replaces: W10340983) |
|
$ 297.49 | |||||
| 2 | W10863947 | Tube, Plastic (Replaces: 2217286) |
|
$ 78.70 | |||||
| 3 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 4 | W10863947 | Dispenser, Water (Replaces: 2185523) |
|
$ 78.70 | |||||
| 5 | WPW10218037 | Evaporator (Replaces: W10218037) |
|
$ 503.87 | |||||
| 6 | W11566407 | Pump, Drain (Replaces: 2313705) |
|
Immediately | $ 127.24 | ||||
| 7 | 2313851 | Tube, Reservoir Pump |
|
$ 46.00 | |||||
| 8 | WPW10217922 | Tube, Water Inlet (Replaces: W10437855) |
|
$ 142.62 | |||||
| 9 | 488660 | Nut, ``u`` |
|
- | |||||
| 10 | 836667 | Spacer |
|
- | |||||
| 11 | A201435 | Clip, Compressor Mounting |
|
- | |||||
| 12 | WP489443 | Screw (Replaces: 489443) |
|
Immediately | $ 7.50 | ||||
| 13 | WP2185625 | Reservoir, Water Slide (Replaces: 2185625) |
|
$ 169.51 | |||||
| 14 | WPW10418868 | Tube, Water Fill (Replaces: W10418868) |
|
$ 69.50 | |||||
| 15 | WP2313890 | Hose, Overflow (Replaces: 2313890) |
|
$ 71.88 | |||||
| 16 | 2217378 | Bracket, Reservoir Spacer |
|
- | |||||
| 17 | WP3400909 | Nut, Push-in (Replaces: 3400909) |
|
$ 7.15 | |||||
| 18 | 8201791 | Brackets, Side (Replaces: 2313602) |
|
$ 25.34 | |||||
| 19 | 2313604 | Guide, Ice |
|
- | |||||
| 20 | 2208427 | Support, Bracket Evaporator/grid |
|
- | |||||
| 21 | W11023835 | Cap, Drain (Replaces: W10503850) |
|
$ 29.79 | |||||
| 22 | W10464829 | Tube, Plug |
|
- | |||||
| 23 | WP3400884 | Screw (Replaces: 3400884) |
|
$ 7.29 | |||||
| 24 | WP2310169 | Wire Assembly Smart Valve (Replaces: 2310169) |
|
$ 117.72 | |||||
| 25 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 26 | 3400886 | Screw |
|
$ 5.65 | |||||
| 27 | WP2324334 | Reservoir, Water (Replaces: 2324334) |
|
$ 183.51 | |||||
| 28 | WP2313637 | Grid Assembly (includes Wire Harness) (Replaces: W10536696) |
|
$ 345.86 | |||||
| 29 | 8281228 | Thumbscrew |
|
- | |||||
| 30 | W10136999 | Nut, Push-in |
|
- | |||||
| 31 | 2208365 | Cover, Grid |
|
- |
