01 - Cooktop Parts

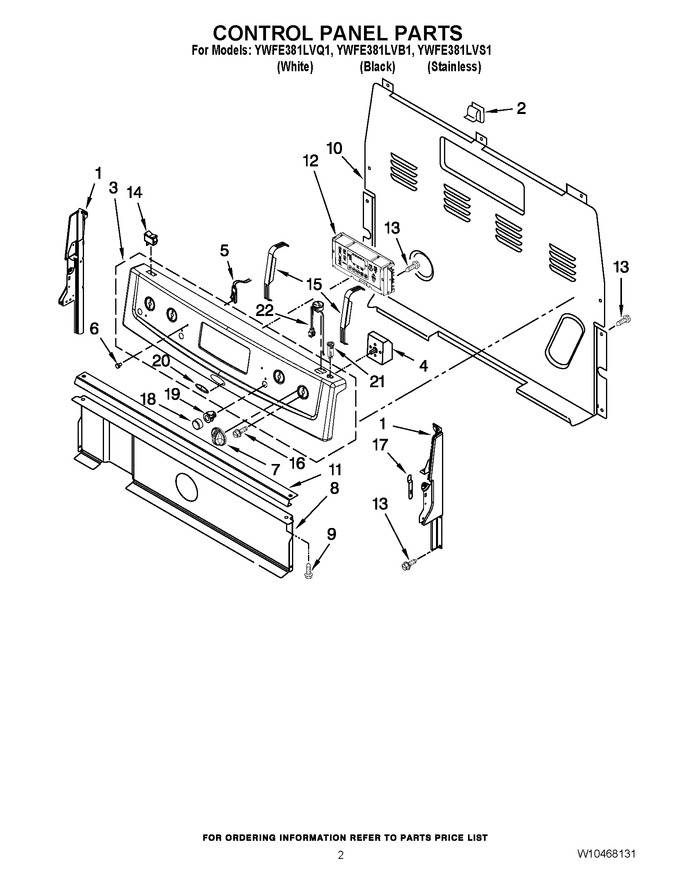

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
$ 138.45 | |||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
$ 40.65 | |||||
| 2 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 11.39 | |||||
| 3 | W10170682 | Panel, Control (white) |
|
$ 54.37 | |||||
| 3 | W10170684 | Panel, Control (stainless Steel) |
|
$ 99.75 | |||||
| 3 | W10170683 | Panel, Control (black) |
|
$ 49.75 | |||||
| 4 | WPW10434452 | Switch, Infinite (lf,rf) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 4 | WP3149404 | Switch, Infinite (lr,rr) (Replaces: W10295576) |
|
Immediately | $ 55.31 | ||||
| 4 | WP8272820 | Switch, Infinite (warm Zone) (Replaces: 8272820) |
|
$ 161.02 | |||||
| 5 | WP8523265 | Light, Ind. (2) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WP9761964 | Knob, Infinite (black) (Replaces: 9761964) |
|
Immediately | $ 20.07 | ||||
| 7 | WP9761962 | Knob, Infinite (white) (Replaces: 9761962) |
|
Immediately | $ 18.59 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Brkt-mntg Console (Replaces: W10182322) |
|
$ 88.97 | |||||
| 12 | WPW10271740 | Control, Range (black) (Replaces: W10271740) |
|
$ 394.46 | |||||
| 12 | WPW10271739 | Control, Range (white) (Replaces: W10271739) |
|
$ 414.94 | |||||
| 13 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 14 | WP4314961 | Switch, Rocker (black) (Replaces: 3148564) |
|
$ 84.56 | |||||
| 14 | 3149360 | Switch, Rocker (white) |
|
$ 89.01 | |||||
| 15 | 9762078 | Brkt-mntg, Eoc |
|
$ 38.13 | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 17 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 18 | 9758491 | Button, Keep Warm (black) |
|
$ 17.77 | |||||
| 18 | 9757492 | Button, Keep Warm (white) |
|
$ 86.41 | |||||
| 19 | W10217758 | Bezel, Keep Warm (black) |
|
$ 25.79 | |||||
| 19 | W10217760 | Bezel, Keep Warm (white) |
|
$ 23.32 | |||||
| 20 | W10209617 | Badge |
|
$ 35.30 | |||||
| 21 | WP9757601 | Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 21 | WP9757602 | Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 22 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 | ||||
| 22 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 100.00 |
