SELECT A DIAGRAM
01 - Cooktop Parts
02 - Oven Parts
03 - Door Parts
04 - Drawer Parts
05 - Control Panel Parts

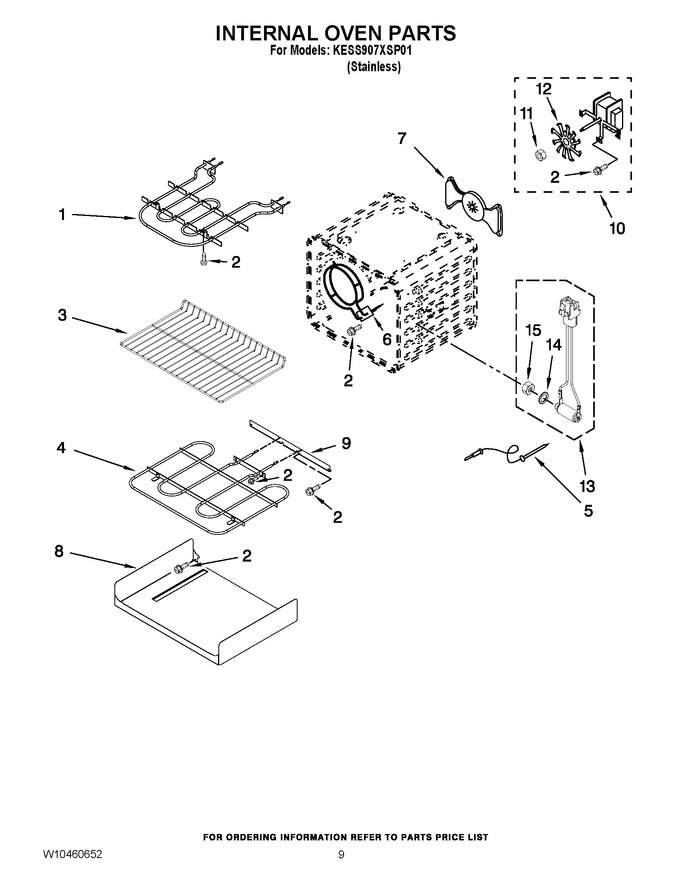

06 - Internal Oven Parts
07 - Top Venting Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP9760774 | Element, Broil (Replaces: 9760774) |
|
Immediately | $ 211.35 | ||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 3 | WPW10179152 | Oven Rack (Replaces: W10179152) |
|
Immediately | $ 133.27 | ||||
| 4 | WPW10207398 | Bake Element (Replaces: W10207398) |
|
Immediately | $ 134.10 | ||||
| 5 | WP9755542 | Meat Probe (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 6 | WP9760769 | Element, Convection (Replaces: 9760769) |
|
Immediately | $ 304.09 | ||||
| 7 | W10860133 | Baffle (Replaces: W10160868) |
|
$ 230.92 | |||||
| 8 | 4455037 | Tray, Hidden Bake |
|
$ 73.11 | |||||
| 9 | 4450039 | Cover, Bake Tray |
|
$ 82.90 | |||||
| 10 | W10794022 | Motor, Convection (Replaces: W10116228) |
|
Immediately | $ 234.38 | ||||
| 11 | WPW10116349 | Acorn Nut (Replaces: W10116349) |
|
$ 19.60 | |||||
| 12 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.12 | ||||
| 13 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
$ 143.37 | |||||
| 14 | WP9755547 | Lock Washer (Replaces: 9755547) |
|
$ 5.77 | |||||
| 15 | WP9755546 | Hex Nut (Replaces: 9755546) |
|
$ 6.57 |
