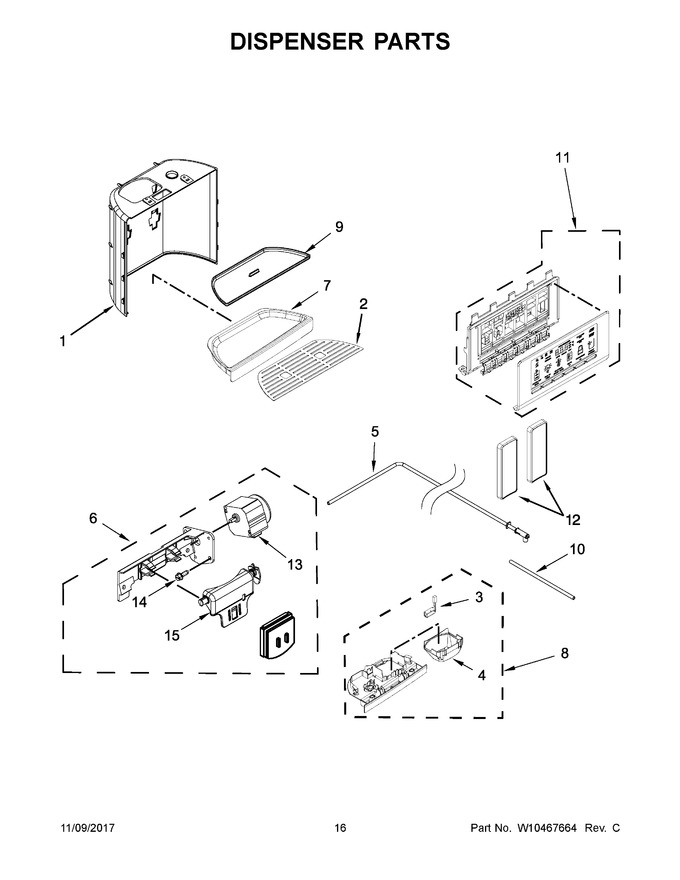

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10317258		Dispenser, False Wall (white)		Appelez-nous	-
2	WPW10317270		Grate, Drip Tray   (Replaces: W10317270)				$ 68.09
3	W11290115		Assembly, Led   (Replaces: W10238083)				$ 76.01
4	WPW10435760		Guide, Ice   (Replaces: W10435760)			Immediately	$ 21.55
5	WPW10386778		Assembly, Water Fitting   (Replaces: W10386778)			Immediately	$ 119.47
6	W11130210		Assembly, Ice Door   (Replaces: W10781990)				$ 144.50
7	W10317274		Tray, Housing (white)				$ 76.61
8	W10353593		Assembly, Seperator				$ 121.93
9	W10317264		Drip Tray, Insert (white)				$ 56.39
10	W11620106		Tube, Water   (Replaces: W10691730)				$ 106.06
11	WPW10623106		Assembly, Electronic Control Ksc23c8eyw02   (Replaces: W10623106)				$ 373.67
12	W10317250		Pad, Ice & Water (white)				$ 289.66
13	WPW10205978		Motor, Dispenser   (Replaces: W10205978)				$ 93.71
14	WP4449745		Screw   (Replaces: 4449745)				$ 7.18
15	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 37.67
11A	W11324963		Assembly, Electronic Control Ksc23c8eyb02   (Replaces: W10623107)				$ 401.85
11B	WPW10623106		Assembly, Electronic Control Ksc23c8eyy02   (Replaces: W10418411)				$ 373.67
12A	W11561037		Pad, Ice & Water (black)   (Replaces: W10317253)				$ 74.64
12B	WPW10346924		Pad, Ice & Water (grey)   (Replaces: W10346924)			Immediately	$ 260.69
1A	W10317259		Dispenser, False Wall (black)			Immediately	$ 120.26
1B	W10317255		Dispenser, False Wall (stainless)				$ 119.65
7A	W10317275		Tray, Housing (black)		Appelez-nous	-
7B	W10859920		Tray, Housing (grey)   (Replaces: W10317276)				$ 60.77
9A	W10317265		Drip Tray, Insert (black)				$ 55.97
9B	WPW10317261		Drip Tray, Insert (stainless)   (Replaces: W10317261)				$ 75.38
