SELECT A DIAGRAM

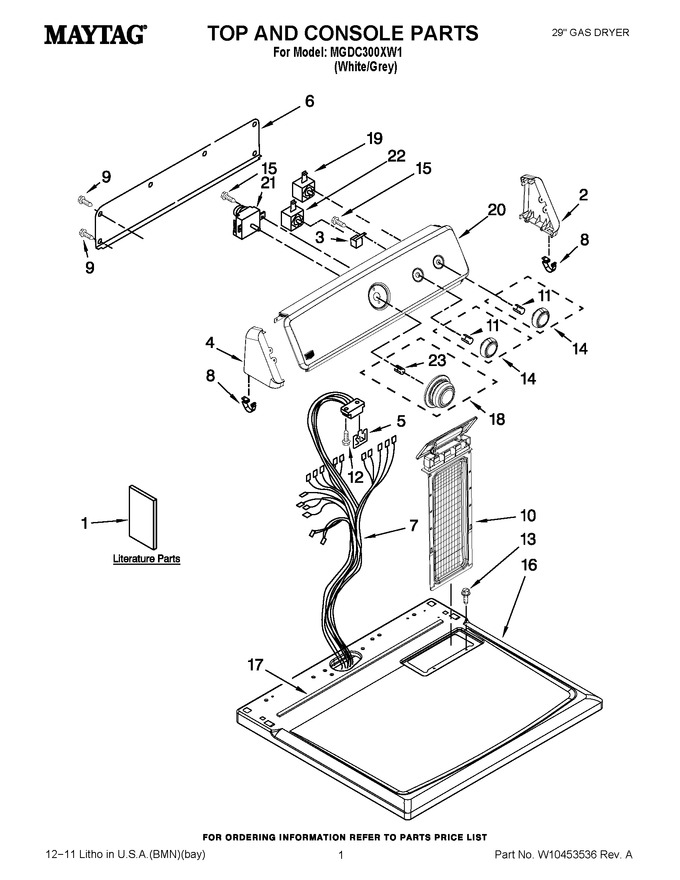

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10336852 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096990		Use & Care Guide		Appelez-nous	-
1	W10346860		Wiring Diagram		Appelez-nous	-
1	W10115228		Installation, Instruction		Appelez-nous	-
2	WPW10193821		Endcap (r.h.)   (Replaces: W10193821)				$ 67.25
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
4	WPW10193824		Endcap (l.h.)   (Replaces: W10193824)				$ 66.95
5	WPW10476828		C-version Control   (Replaces: 8558178)			Immediately	$ 296.94
6	W10103406		Panel, Rear Console				$ 121.78
7	WPW10346387		Harness, Wiring   (Replaces: W10346387)				$ 253.42
8	WP8312709		Clip-console (2)   (Replaces: 8312709)			Immediately	$ 14.93
9	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 6.80
10	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 49.17
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	WPW10317455		Knob, Push-to-start   (Replaces: W10317455)				$ 57.00
15	WP90767		Screw, 8-18 X 3/8   (Replaces: 3348629)			Immediately	$ 7.43
16	WPW10225059		Top & Seal Assembly   (Replaces: W10225059)				$ 225.62
17	W10316616		Foam Seal Top				$ 25.01
18	WPW10317454		Knob, Timer Assembly   (Replaces: W10317454)				$ 57.12
19	WPW10117655		Switch, Push-to-start   (Replaces: W10117655)			Immediately	$ 77.04
20	W10115475		Console Panel & Bracket Assembly (include Item. 8 )				$ 224.85
21	WP8566184		Timer Assembly 60 Hz.   (Replaces: 8566184)			Immediately	$ 263.09
22	8530169		Switch, Rotary Temperature				$ 132.35
23	WP688805		Spring, Clip Knob   (Replaces: 688805)			Immediately	$ 7.38

    View Diagram in Separate Window       Print Part List
