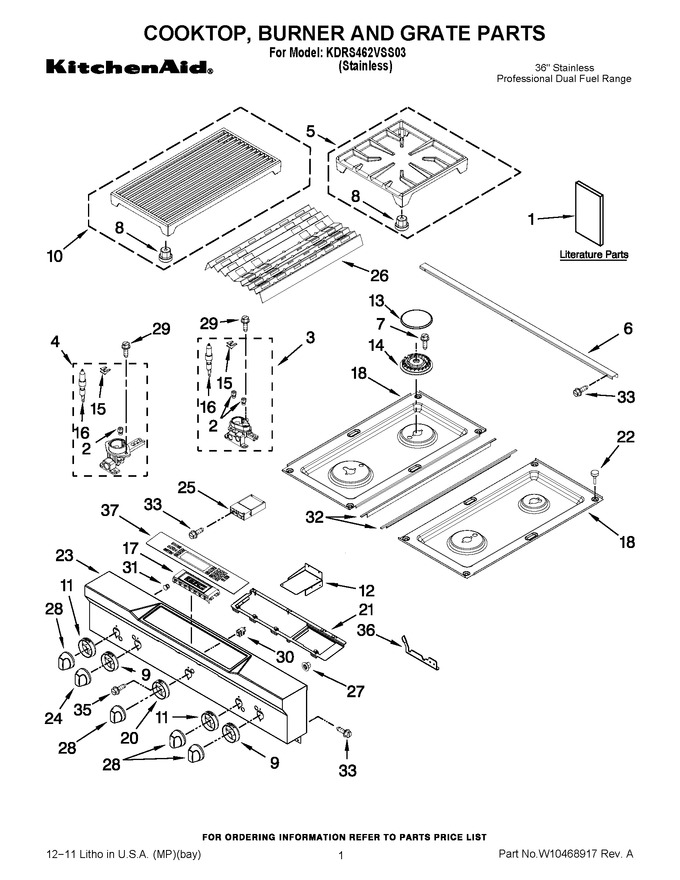

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10403294 | Tech Sheet (english) |
|
- | |||||
| 1 | W10403296 | Tech Sheet (french) |
|
- | |||||
| 1 | W10399386 | Use & Care Guide |
|
- | |||||
| 1 | W10394571 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10075750 | Instr, Installer |
|
- | |||||
| 2 | 4456495 | Grill |
|
- | |||||
| 2 | W11051480 | Orifice (lr,rf) (Replaces: W10364221) |
|
$ 81.62 | |||||
| 2 | W10819958 | Orifice (lf-low) (Replaces: W10256132) |
|
$ 87.99 | |||||
| 2 | W10340424 | Orifice (lf-high) |
|
$ 84.30 | |||||
| 3 | WPW10364555 | Orifice Holder (dual - Lf) (Replaces: W10364555) |
|
$ 102.08 | |||||
| 4 | W10282659 | Orifice Holder (rr) |
|
$ 36.45 | |||||
| 4 | WPW10364556 | Orifice Holder (lr,rf) (Replaces: W10364556) |
|
$ 92.15 | |||||
| 5 | WPW10115928 | Grate, Burner (Replaces: W10115928) |
|
$ 181.27 | |||||
| 6 | W10269217 | Trim, Island |
|
$ 277.64 | |||||
| 7 | WPW10373929 | Screw, Burner Top (Replaces: W10373929) |
|
$ 39.29 | |||||
| 8 | W10185266 | Rubber, Foot (Replaces: 8286695) |
|
Immediately | $ 13.92 | ||||
| 9 | W10261510 | Bezel, Front |
|
$ 49.60 | |||||
| 10 | W11241676 | Grate, Grill (Replaces: W10221254) |
|
$ 347.86 | |||||
| 11 | W10261512 | Bezel, Rear |
|
- | |||||
| 12 | W10362907 | Bracket, Spark Module |
|
- | |||||
| 13 | WPW10364463 | Cap, Burner (rr) (Replaces: W10364463) |
|
Immediately | $ 50.27 | ||||
| 13 | WPW10256032 | Cap, Burner (lr,rf) (Replaces: W10256032) |
|
Immediately | $ 79.54 | ||||
| 13 | WPW10256034 | Cap, Burner (lf) (Replaces: W10256034) |
|
$ 124.37 | |||||
| 14 | WPW10256027 | Base, Burner (rf,lr) (Replaces: W10256027) |
|
Immediately | $ 90.92 | ||||
| 14 | W11106799 | Base, Burner (lf) (Replaces: W10256029) |
|
Immediately | $ 87.49 | ||||
| 14 | WPW10282515 | Base, Burner (rr) (Replaces: W10282515) |
|
Immediately | $ 134.88 | ||||
| 15 | W10256046 | Spring, Electrode (lf,lr,rf) |
|
$ 10.40 | |||||
| 15 | 8286863 | Spring, Electrode (rr) |
|
$ 69.23 | |||||
| 16 | WPW10145991 | Electrode (rr) (Replaces: W10145991) |
|
Immediately | $ 76.02 | ||||
| 16 | W10833887 | Electrode (lr,rf,lr) (Replaces: W10256047) |
|
Immediately | $ 45.59 | ||||
| 17 | WPW10298119 | Module, User Interface (Replaces: W10298119) |
|
$ 459.53 | |||||
| 18 | W10352968 | Cooktop (right) |
|
$ 303.53 | |||||
| 18 | W10352969 | Cooktop (left) |
|
$ 302.18 | |||||
| 20 | W10261514 | Bezel, Grill |
|
- | |||||
| 21 | W10250476 | Bracket, User Interface |
|
- | |||||
| 22 | 4448520 | Bumper |
|
$ 20.03 | |||||
| 23 | W10284669 | Panel, Control |
|
- | |||||
| 24 | W11244176 | Knob, Control (dual - Lf) (Replaces: W10250389) |
|
$ 70.53 | |||||
| 25 | WPW10475147 | Module, Spark (Replaces: 7431P038-60) |
|
Immediately | $ 346.50 | ||||
| 26 | W10250469 | Wave, Tray |
|
$ 255.60 | |||||
| 27 | 7103P166-60 | Nut, Hex |
|
$ 16.70 | |||||
| 28 | W11177673 | Knob, Control (Replaces: W10250391) |
|
$ 81.50 | |||||
| 29 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 30 | W10116114 | Light, Indicator Housing |
|
Immediately | $ 84.21 | ||||
| 31 | W10116115 | Lens, Indicator Light |
|
$ 7.07 | |||||
| 32 | W10291193 | Trim |
|
- | |||||
| 33 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 13.25 | ||||
| 35 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 6.80 | |||||
| 36 | W10130759 | Bracket,console (right) |
|
$ 68.35 | |||||
| 36 | W10130760 | Bracket,console (left) |
|
$ 68.35 | |||||
| 37 | WPW10116104 | Keypad (Replaces: W10116104) |
|
Immediately | $ 335.26 |
