SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Body Parts


4 - Warming Drawer


5 - Door


6 - Door Lock


7 - Convection Fan

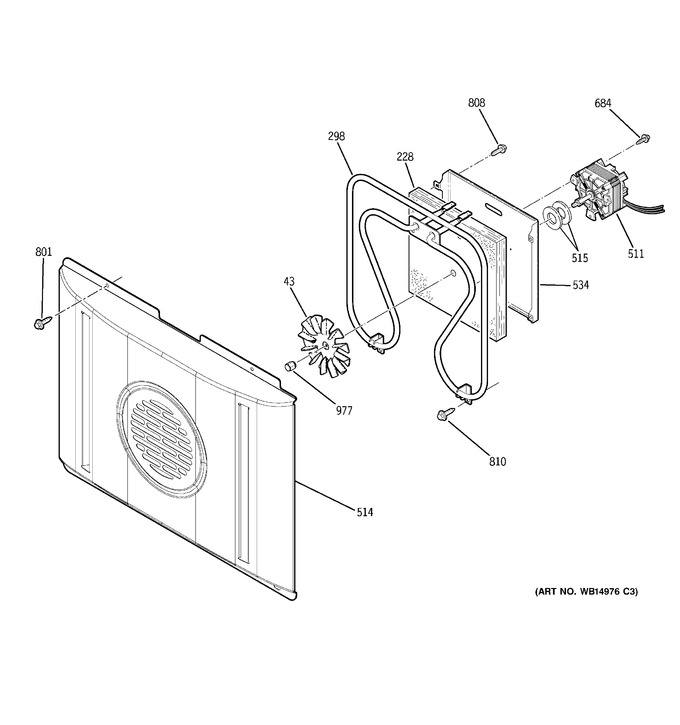

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
43	WG02F00731		Hub Blade Asm   (Replaces: WB02T10289)			Immediately	$ 32.88
228	WB35T10210		Insulation Conv		Appelez-nous	-
298	WG02F16499		Element Convx Asm   (Replaces: WB44T10086)				$ 52.67
511	WG02F02831		Motor Psc Conv   (Replaces: WB26T10037)				$ 152.39
514	WB26T10061		Cover Fan Conv		Appelez-nous	-
515	WB02T10514		Gasket Conv Fan		Appelez-nous	-
534	WB02T10471		Bracket Conv Fan		Appelez-nous	-
684	WB01T10047		Scr 8-32 X .625 M Hxw S		Appelez-nous	-
801	WB1M1		Screw		Appelez-nous	-
808	WD2X430		Screw 8-18 5/16 Ph		Appelez-nous	-
810	WB01T10072		Scr 10-16 Ab Ihw .625 Ni		Appelez-nous	-
977	WS01A01105		Nut   (Replaces: WB02T10017)			Immediately	$ 8.55
	WS01F02431		Oven Sensor   (Replaces: WG02F04474)			Immediately	$ 27.18
	WG02F05543		Generator Module				$ 1,714.92
	WG02F06134		Control Ui Asm				$ 296.33
	WG02L02222		Surface De Cuisson Et Verre				$ 1,127.39
	WG02L02854		Glass Crystal Asm				$ 920.74

    View Diagram in Separate Window       Print Part List
