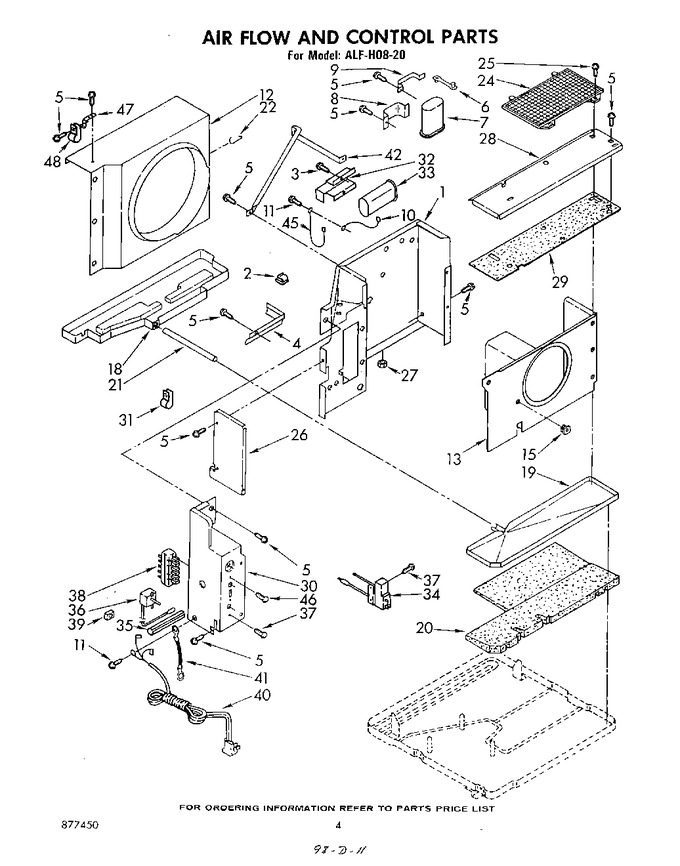

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 998365 | Wall, Dividing (requires Insulation No. 469938) |
|
- | |||||
| 2 | 465585 | Clamp, Capillary (2) |
|
- | |||||
| 3 | 488481 | Screw, Sm No.10 X 3/8 (repair) |
|
- | |||||
| 3 | WP488729 | Screw, S.m. No.8 X 3/8 (2) (Replaces: 488979) |
|
Immediately | $ 7.45 | ||||
| 4 | 852317 | Channel, Wiring |
|
- | |||||
| 5 | WP489069 | Screw, Sm No.8 X 1/2a (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 6 | 648791 | Clamp, Cable |
|
- | |||||
| 7 | 998239 | Capacitor, Running |
|
- | |||||
| 8 | 475844 | Bracket, Capacitor |
|
- | |||||
| 9 | 852992 | Bracket, Capacitor |
|
- | |||||
| 10 | 948285 | Wire, Ground |
|
- | |||||
| 11 | WPW10141604 | Screw, St 8-32 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 12 | 647862 | Shroud, Condenser |
|
- | |||||
| 13 | 852875 | Housing, Wheel |
|
- | |||||
| 15 | 487808 | Fastener, Snap (2) |
|
- | |||||
| 18 | 852993 | Pan, Condensate Condenser |
|
- | |||||
| 19 | 853268 | Pan, Condensate Evaporator |
|
- | |||||
| 20 | 853269 | Insulation, Pan |
|
- | |||||
| 21 | 49181 | Tube, Condensate |
|
- | |||||
| 22 | 647873 | Retainer, Shroud (3) |
|
- | |||||
| 24 | 997949 | Guard, Impeller |
|
- | |||||
| 25 | WP488729 | Screw, Sm No.8 X 1/2a (Replaces: 487910) |
|
Immediately | $ 7.45 | ||||
| 26 | 852994 | Wall, Dividing L.s. |
|
- | |||||
| 27 | 649620 | Clip, Speed |
|
- | |||||
| 28 | 856957 | Cover, Evaporator |
|
- | |||||
| 29 | 948410 | Insulation, Cover |
|
- | |||||
| 30 | 993644 | Box, Control |
|
- | |||||
| 31 | 947072 | Clamp, Wiring |
|
- | |||||
| 32 | 998009 | Bracket, Fan Capacitor |
|
- | |||||
| 33 | 997981 | Capacitor, Fan Motor |
|
- | |||||
| 34 | 471487 | Thermostat De-icer |
|
- | |||||
| 35 | 475841 | Sleeve, Insulation (temp. Control) |
|
- | |||||
| 36 | 853275 | Control, Temperature |
|
- | |||||
| 37 | 488734 | Screw, Mach 6-32 X .175 (2) |
|
- | |||||
| 38 | 947238 | Switch, Pushbutton |
|
- | |||||
| 39 | 647865 | Grommet, Wiring |
|
- | |||||
| 40 | 648535 | Cable, Appliance |
|
- | |||||
| 41 | 857634 | Wire, Ground |
|
- | |||||
| 42 | 852318 | Support, Unit |
|
- | |||||
| 45 | 998010 | Wire, Ground |
|
- | |||||
| 46 | 488735 | Screw, Mach 6-32 X .175 (2) |
|
- | |||||
| 47 | 947321 | Bracket, Tube Support |
|
- | |||||
| 48 | 877450 | List, Repair Parts |
|
- | |||||
| 48 | 947599 | Guide, Use & Care |
|
- | |||||
| 48 | 949789 | Guide, Consumer Buy |
|
- | |||||
| 48 | 998376 | Sheet, Service Tech (service Information) |
|
- | |||||
| 48 | 950122 | Guide, Energy |
|
- | |||||
| 48 | 484069 | Cover, Winter |
|
$ 62.49 | |||||
| 48 | 43996 | Clamp, Discharge Tube |
|
- | |||||
| 48 | 647854 | Seal, Cabinet Bottom |
|
- | |||||
| 48 | WP854334 | Seal, Cabinet Back (2) (Replaces: 858839) |
|
$ 12.55 | |||||
| 48 | 647846 | Insulation, Cabinet Top (5/8`` X 13-14`` X 25-11/16``) |
|
- | |||||
| 48 | 647847 | Insulation, Cabinet R.s. |
|
- | |||||
| 48 | 647848 | Insulation, Cabinet L.s. |
|
- | |||||
| 48 | 469938 | Insulation, Fiberglass (1/4`` X 24`` X 48``) |
|
- | |||||
| 48 | 212643 | Sealer, Gum Type (cabinet & Windows) (Replaces: 470168) |
|
Immediately | $ 86.78 | ||||
| 48 | WP279368 | Cement, Attach Insulation) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 48 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 48 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 48 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 48 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 48 | 47263 | Wire, White (25 Ft.) |
|
- |
