SELECT A DIAGRAM

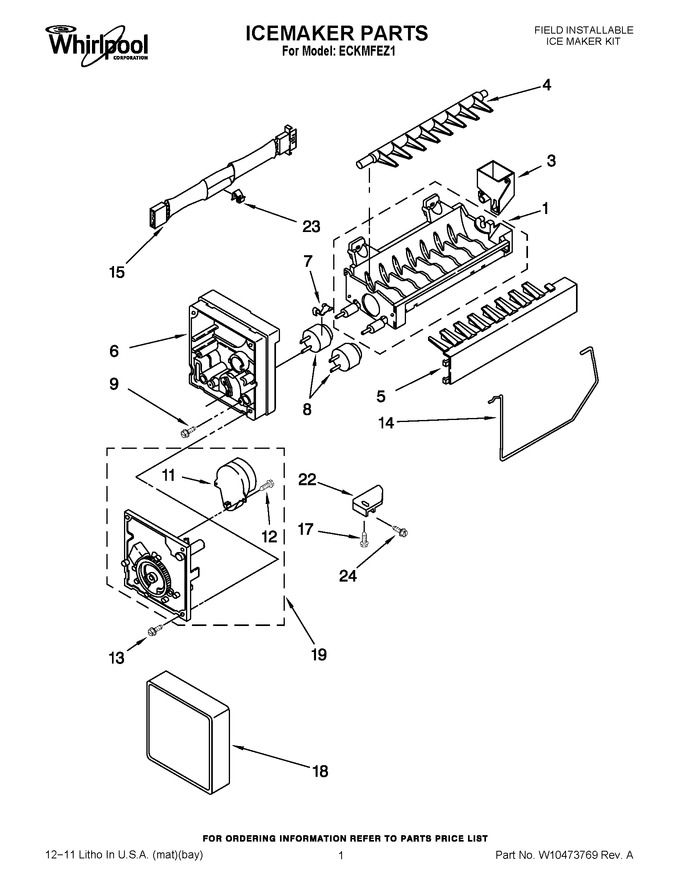

01 - Icemaker Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10190929 | Mold & Heater Assembly (Replaces: 628228) |
|
$ 233.52 | |||||
| 3 | W10122561 | Bearing & Inlet |
|
$ 29.16 | |||||
| 4 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 5 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 6 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 7 | WP2315522 | Retainer Thermostat (2) (Replaces: 2315522) |
|
$ 11.60 | |||||
| 8 | WP627985 | Thermostats (wako (also Order 542369 Cememnt Alumilastic)) (Replaces: 628397) |
|
$ 114.64 | |||||
| 8 | WP627985 | Thermostats (tod) (Replaces: 627985) |
|
$ 114.64 | |||||
| 9 | 8533917 | Screw, (2) 10-32 X 49/64 |
|
$ 14.04 | |||||
| 11 | NP | Motor (not Available, Order No.19) |
|
- | |||||
| 12 | 489136 | Screw, (2) 3-24 X 23/64 |
|
$ 10.80 | |||||
| 13 | WP681249 | Screw (3) (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 14 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 88.76 | |||||
| 15 | WPW10360140 | Wiring, Harness (Replaces: W10360140) |
|
$ 119.45 | |||||
| 17 | WP489478 | Screw, 8-18 X .50 (Replaces: 489478) |
|
$ 8.18 | |||||
| 18 | WPW10289690 | Cover (Replaces: W10289690) |
|
Immediately | $ 8.82 | ||||
| 19 | 8201515 | Module Assembly (includes Items 11 & 12) (Replaces: 626691) |
|
Immediately | $ 159.78 | ||||
| 22 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 23 | WP628379 | Clip, Thermal Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 24 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| NI | W11729596 | Complete Ice Maker (Replaces: W10365049) |
|
Immediately | $ 155.00 | ||||
| NI | W11625904 | Ice Cube Pan (Replaces: 2166261) |
|
$ 67.83 | |||||
| NI | W10363267 | Instruction Booklet |
|
- |
